Spherical dual light infrared thermal camera manufacturer of HJKIR

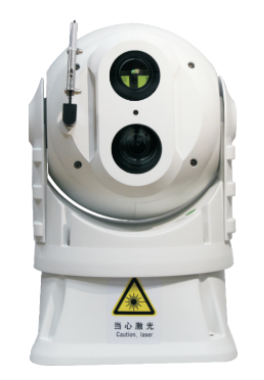

Spherical dual light

PSGMB200 spherical double optical on-line temperature monitoring system is composed of by double optical ball machine, electric control box, industrial control computer and intelligent temperature measuring software. High-precision ball machine equipped with infrared thermal imaging, azimuth can be 360° continuous rotation, with small size, light weight, wide monitoring range, can be widely used in park security monitoring, power grid, industrial temperature measurement, rail transit and other scenarios.

PRODUCT FEATURES

Number of preset bits: 255 preset bits. Positioning function: absolute Angle positioning

Advanced control algorithm makes the PTZ have high positioning accuracy

The use of three closed loop control system, with a wide speed dynamic range, large angular acceleration

IP67 protection grade, all-weather indoor and outdoor work

Basic motion function: manual control multi-stage speed adjustable

Scanning mode: preset bit by point scanning, adjustable preset bit residence time, adjustable scanning speed

Specifications

serial number	Technical index item	index parameter
1	Infrared detector type	Uncooled focal plane detector
2	Resolution	640×512、384×288
3	Optical focal length	8mm、12mm、13mm、19mmm、25mm（optional）
4	Temperature range	Normal temperature: -20℃~200℃
5	Temperature measurement accuracy	Medium temperature range: 150℃~800℃
6	Visible light sensor type	High temperature range: 200℃~1600℃
7	Resolution	±2℃ or 2%
8	Lens	1/2.8" Progressive Scan CMOS
9	Minimum illumination	Color: 0.05Lux, black and white: 0.01Lux
10	Head type	Spherical structure
11	Rotation range	Horizontal 360° continuous rotation, pitching -30°~+40°
12	Rotational speed	Level 0.05~80°/s, pitch 0.05~60°/s
13	Angular position accuracy	0.05 °
14	Communication protocol	PECLO-D, PECLO-P, or user-defined protocol
15	Network interface	100M
16	Network protocol	Support ONVIF/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/TCP
17	Real-time Angle return	Supports real-time Angle return or query Angle return
18	Preset point \ cruise line	Supports 255 preset bits
19	Power supply range	DC12V
20	Power dissipation	≤36W
21	volume	Phi 198 x 315 mm
22	weight	≤6Kg
23	Operating temperature range	- 20 ℃ ~ + 60 ℃
24	Class of protection	IP67
25	Installation mode	Bracket mounting
