T-shaped dual-light pan-tilt

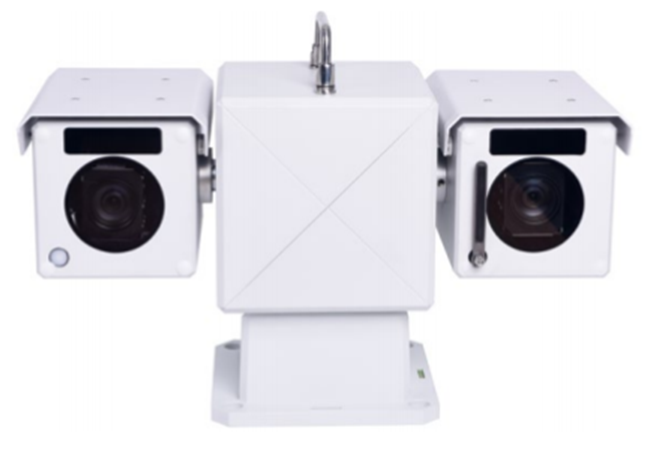

PSGMT490 double-spectrum imager is a double-spectrum T-type high-speed imager, equipped with infrared thermal imaging and high-definition visible light, small size, light weight, wide monitoring range, can be installed on mobile robots, widely used in substations, power distribution rooms, factory inspection and other scenes.

PRODUCT FEATURES

Compatible with a variety of optical lenses, suitable for more applications

Wide temperature range, up to 1600℃

High temperature measurement accuracy, up to ±2℃

The use of three closed loop control system, with a wide speed dynamic range, large angular acceleration

T type double bin load form, compact structure, small size

Support 12VDC, 24VDC, 24VAC power supply

Specifications

serial number	Technical index item	index parameter
1	Infrared detector type	Uncooled focal plane detector
2	Resolution	640×512、384×288
3	Optical focal length	8mm、12mm、13mm、19mmm、25mm（optional）
4	Temperature range	-20℃~500℃ (can be extended to 1600℃)
5	Temperature measurement accuracy	±2℃ or 2%
6	Visible light detector type	1/2.8” CMOS
7	Visible light resolution	200W, 300W, 500W, etc. (optional)
8	Visible focal length	f = 6.1 ~ 317.0mm, 52 times optical zoom (optional)
9	Head type	Double T load
10	Transmission form	Precise spur gear drive
11	Rotation range	Horizontal 360° continuous rotation, pitch ±90°
12	Rotational speed	Level 0.1~50°/s, pitch 0.1~50°/s
13	Repeated positioning accuracy	±0.15
14	Remote upgrade	At the same time support model and PTZ remote upgrade
15	Communication protocol	PECLO+VISCA
16	Automatic cruise	Support, focal length and PTZ speed matching, 8 cruise scan
17	Real-time Angle return	Supports real-time Angle return or query Angle return
18	Preset point \ cruise line	Supports 255 preset bits
19	Electromagnetic compatibility	Meet the requirements of GB/T 17626
20	Communication interface	1 Adaptive RJ45 Ethernet port
21	RS485 controller interface	Supports adaptive Pelco-P and Pelco-D protocols. The baud rate can be 2400, 4800, 9600, or 19200
22	External input	Two alarm inputs
23	Output port	2 alarm outputs /1 relay outputs
24	Application programming interface	Supports ONVIF2.0 and GD28181 protocols, and supports SDK and third-party platform access
25	Power supply range	DC12V, 5.0A/DC24V, 6A
26	Power dissipation	≤88W (Min.) /≤140W(infrared light ON, low temperature start)
27	dimension	L490.0mm x W205.0mm x H350mm(both sides)
28	weight	10kg
29	Operating ambient temperature	- 40 ℃ ~ + 60 ℃
30	Working ambient humidity	0 ~ 95% (no condensation)
31	Class of protection	IP67, built-in 4000V lightning protection, surge protection and surge protection
