PSGT320

PSGT320

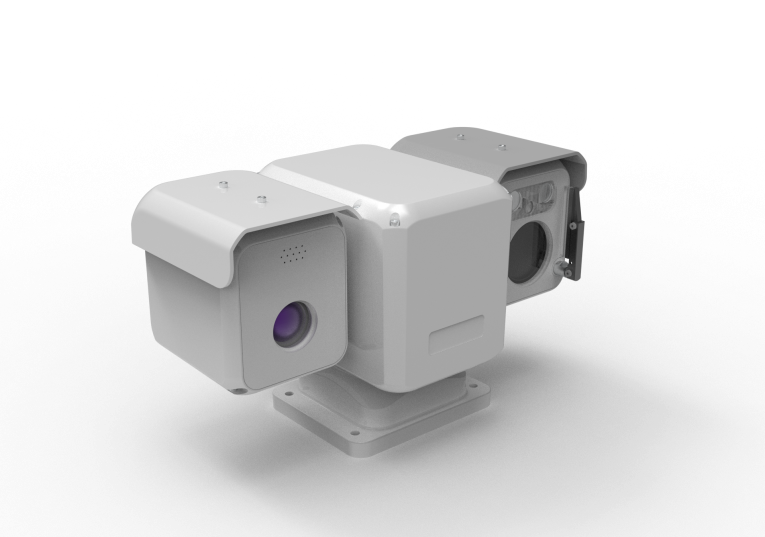

The PSGT320 dual-spectrum PTZ, infrared heat camara is a dual-spectrum T-shaped high-speed PTZ equipped with ir infrared camera and high-definition visible light. thermal imaging device with Pan tilt CCTV camera is small in size, light in weight, and has a wide monitoring range. pan tilt zoom camera system can be installed on a mobile robot and is widely used in substations, distribution rooms, factory inspections and other scenarios.

PRODUCT FEATURES

Using three closed-loop control system, it has wide velocity dynamic range and large angular acceleration;

Advanced control algorithms enable the gimbal to have ultra-low standby and operating power consumption;

T-type double-compartment loading form, compact structure and small size;

Dual-light fusion target detection and positioning, accurate target positioning;

Equipped with position locking function, it can quickly recover in case of external disturbance;

High-precision absolute angle sensor with high positioning accuracy;

Specifications

Serial number	Technical indicators	Indicator parameters
1	Infrared detector type	Uncooled focal plane detector
2	Resolution	640×512/384×288
3	Optical focal length	8mm, 12mm, 13mm, 19mm (optional)
4	Temperature measurement range	-20℃~150℃
5	Temperature measurement accuracy	±2℃ or 2%
6	Visible light detector type	1/2.8 ” CMOS
7	Visible light resolution	2048×1536
8	Visible light focal length	4.8-120mm, 25x optical zoom (optional)
9	PTZ Type	T-type double-side load
10	Transmission form	Precision spur gear drive
11	Rotation range	360° horizontal continuous rotation, ±90° pitch
12	Rotation speed	Horizontal 0.17~100°/s, Tilt 0.17~80°/s
13	Maximum acceleration	Horizontal 300°/s², Tilt 240°/s²
14	Angular position accuracy	0.1°
15	Communication Protocol	PECLO-D, PECLO-P or custom protocol
16	Real-time angle feedback	Support real-time angle transmission or query angle transmission
17	Preset points\cruise routes	Support 255 preset positions
18	Power supply range	24±4V
19	Power consumption	Standby power consumption ≤4W, maximum operating power consumption ≤8W
20	volume	Length × width × height: 320 × 170 × 170 mm
twenty one	weight	≤5Kg
twenty two	Operating temperature range	-20℃~+60℃
twenty three	Protection level	IP66
twenty four	Electromagnetic compatibility	Meet all requirements of GB/T 17626
