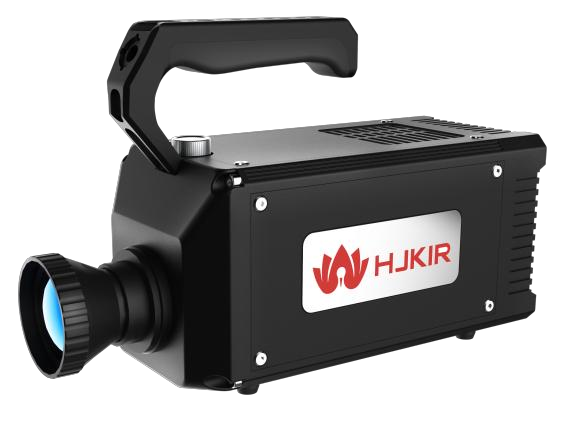

MC11H

Cooled MWIR Thermal Camera

MC11H high frame rate medium wave cooled infrared thermal imaging thermometer, infrared heat camera adopts excellent performance medium wave mercury cadmium telluride cooled infrared detector, high definition infrared camera has the characteristics of high sensitivity, fast response speed and high frame rate, and cam thermal can obtain the infrared thermal distribution of fast moving targets; high speed thermal imagers can provide special spectral filters, such as flame temperature measurement filters, special gas spectral filters, etc.; rich data interfaces and professional data analysis software can be widely used in various scientific research fields.

PRODUCT FEATURES

Cooled medium wave detector;

Full resolution frame rate 100Hz;

Can quickly disassemble and replace various filters;

1280×1024 resolution;

Compatible with standard, wide-angle, telephoto, microscopic and other lenses;

Maximum temperature measurement can reach 2000℃;

Specifications

Detector type	Medium wave cooled MCT focal plane detector
Cooling method	Sterling closed loop cooling
Number of pixels	1280×1024
Pixel spacing	15μm
Wavelength range	3.7～4.8μm
Thermal sensitivity (NETD)	≤25mk@30℃
Frame rate	100Hz (full resolution output)
Cooling time	≤7min@25℃
F number	F2/F4
Color palette	Multiple color palettes, including white hot, black hot, iron red, rainbow, etc.
Contrast, brightness	Auto / Manual
Output data format	16-bit temperature data (full bitstream)
Electronic magnification	2X, 4X
Temperature measurement accuracy	±2℃ or ±2%
Temperature measurement range	-20℃～2000℃ (need to be divided into sections)
Data interface	RJ45, Cameralink, Serial port
Network standard	Gigabit/10GbE
Protocol support	UDP
Input power supply voltage	DC24±2V
Steady-state power consumption	<25W
Reverse connection protection	Yes
Over-voltage and under-voltage protection	Yes
Operating temperature	-40℃～+60℃ (-20℃～+60℃ to ensure temperature measurement accuracy)
Storage temperature	-50℃～+70℃
Temperature shock resistance	5℃/min (-40℃～+60℃)
Vibration resistance	4.3g, 2 hours per axis for x, y, and z
Shock resistance	30g acceleration, half sine wave, pulse width 6ms, 3 impacts in the installation direction
Humidity	≤95% (non-condensing)
Focal length	25mm, 50mm, 100mm, 200mm and other focal length lenses are available
Focus mode	Manual/electric
Dimensions	Length × width × height: 300mm × 150mm × 210mm (excluding lens)
Weight	≤8kg
Mounting holes	Universal tripod interface
Real-time temperature display	Support
Various temperature measurement objects	Support
Alarm function	Support
Video recording/photographing/playback	Support
Operating environment	Support win32, x64, Linux (x86/ARM)
Data acquisition	Get 16-bit temperature data (full code stream) through callback function
