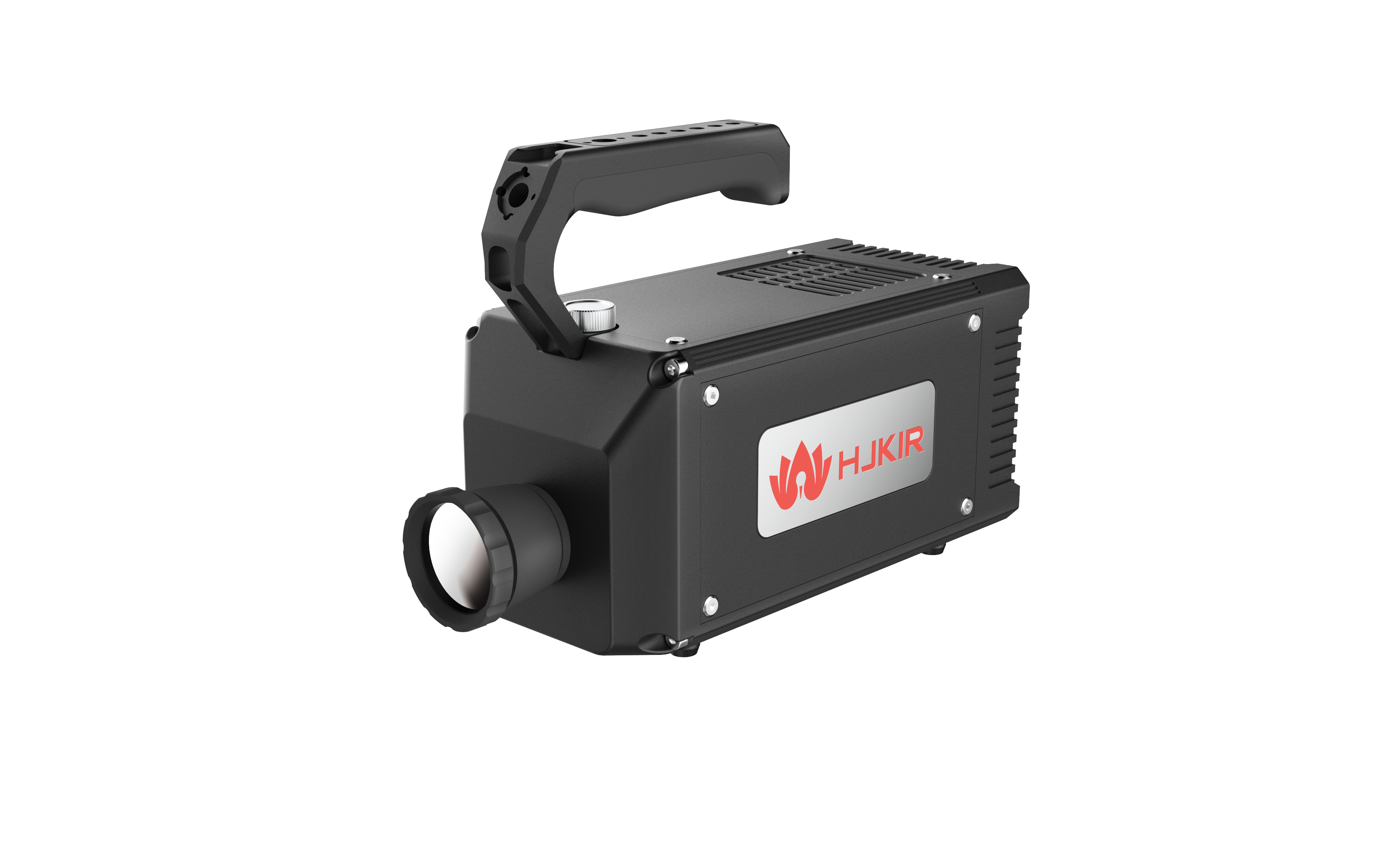

LC16H2

Cooled LWIR Thermal Camera

LC16H2 high frame rate long-wave cooled ir thermal camera adopts high-performance long-wave HgCdTe cooled infrared detector, high speed thermal camera has the characteristics of high sensitivity, fast response speed and high frame rate, and can obtain the thermographic temperature distribution of fast-moving targets; high definition infrared camera has rich data interfaces and professional data analysis software, and can be widely used in various scientific research fields.

PRODUCT FEATURES

Thermographic camera has cooled long-wave detector;

thermal imager camera has 640×512 resolution;

Full resolution frame rate 200Hz;

Compatible with standard, wide-angle, telephoto, microscopic and other lenses;

Maximum temperature measurement up to 2000℃;

Output Cameralink digital video and network video at the same time.

Specifications

Detector type	Long-wave cooled MCT focal plane detector
Cooling method	Sterling closed-loop cooling
Number of pixels	640×512
Pixel spacing	15μm
Wavelength range	7.7～9.5μm
Thermal sensitivity (NETD)	≤25mk@30℃
Frame rate	200Hz (full resolution output)
Cooling time	≤7.5min@25℃
F number	F2
Color palette	Multiple color palettes, including white hot, black hot, iron red, rainbow, etc.
Contrast, brightness	Auto / Manual
Data format	16-bit temperature data (full bitstream)
Electronic magnification	2X, 4X
Temperature measurement accuracy	±2℃ or ±2%
Temperature measurement range	-20℃～2000℃
Data interface	RJ45, Cameralink, Serial port
Network standard	Gigabit Ethernet, 10G Ethernet
Protocol support	UDP
Input power supply voltage	DC24±2V
Steady-state power consumption	<25W
Reverse connection protection	Yes
Over-voltage and under-voltage protection	Yes
Operating temperature	-40℃～+60℃ (-20℃～+60℃ to ensure temperature measurement accuracy)
Storage temperature	-50℃～+70℃
Temperature shock resistance	5℃/min (-40℃～+60℃)
Vibration resistance	4.3g, 2 hours per axis for x, y, and z
Shock resistance	30g acceleration, half sine wave, pulse width 6ms, 3 impacts in the installation direction
Humidity	≤95% (non-condensing)
Focal length	25mm, 50mm, 100mm, 200mm and other focal length lenses are available
Focus mode	Manual/electric
Dimensions	Length × width × height: 205mm × 100mm × 160mm (excluding lens)
Weight	≤5kg
Mounting holes	Universal tripod interface
Real-time temperature display	Support
Multiple temperature measurement objects	Support
Alarm function	Support
Record/photo/playback	Support
Operating environment	Support win32, x64, Linux (x86/ARM)
Data acquisition	Get 16-bit temperature data (full code stream) through callback function
