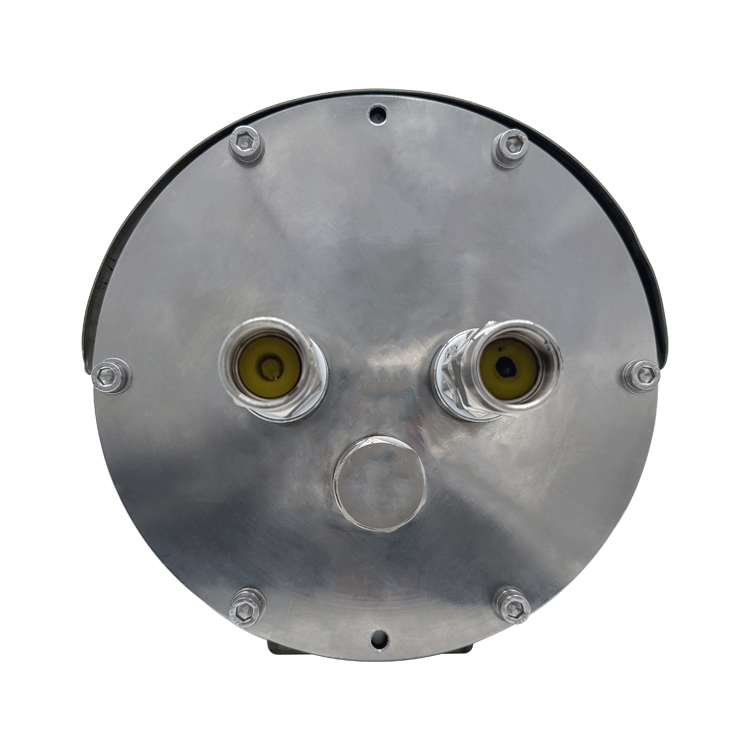

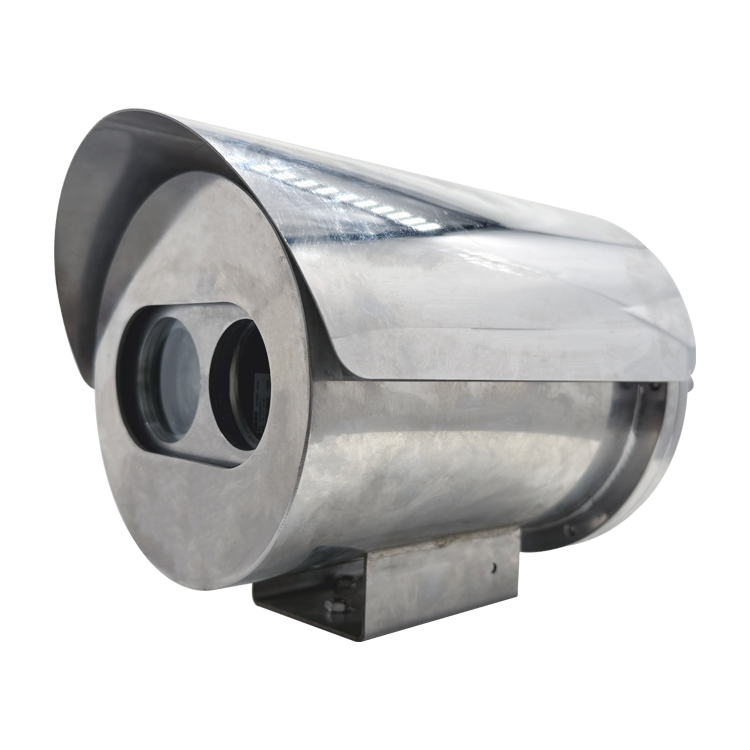

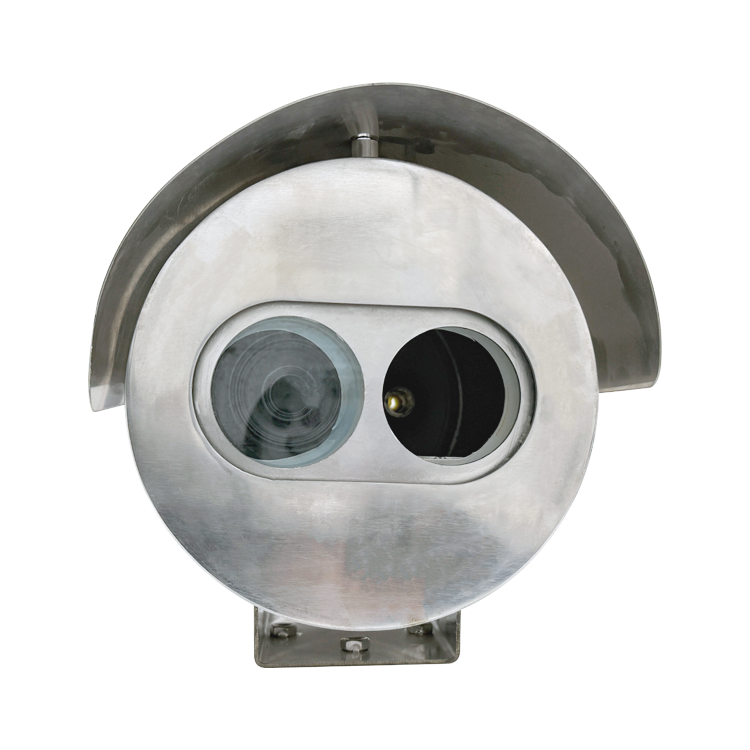

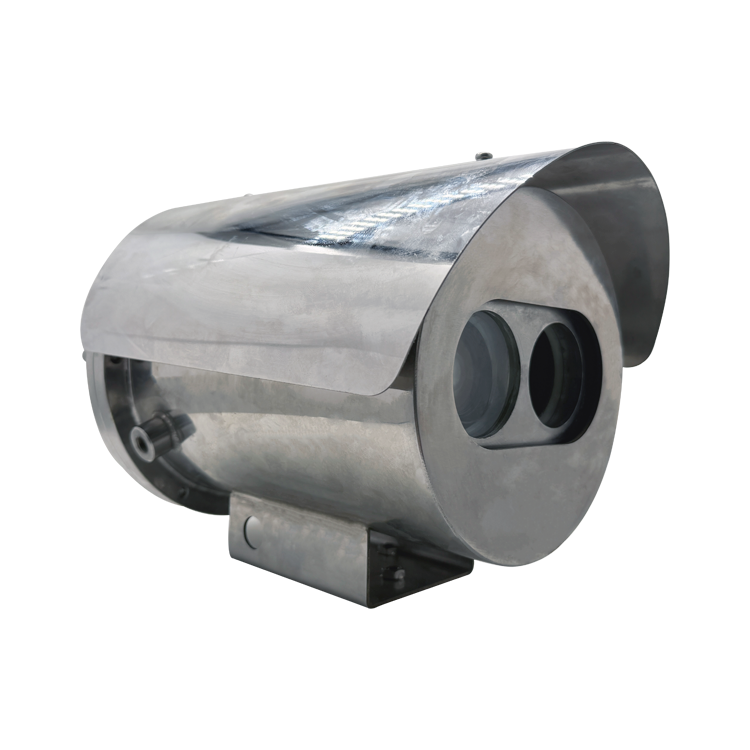

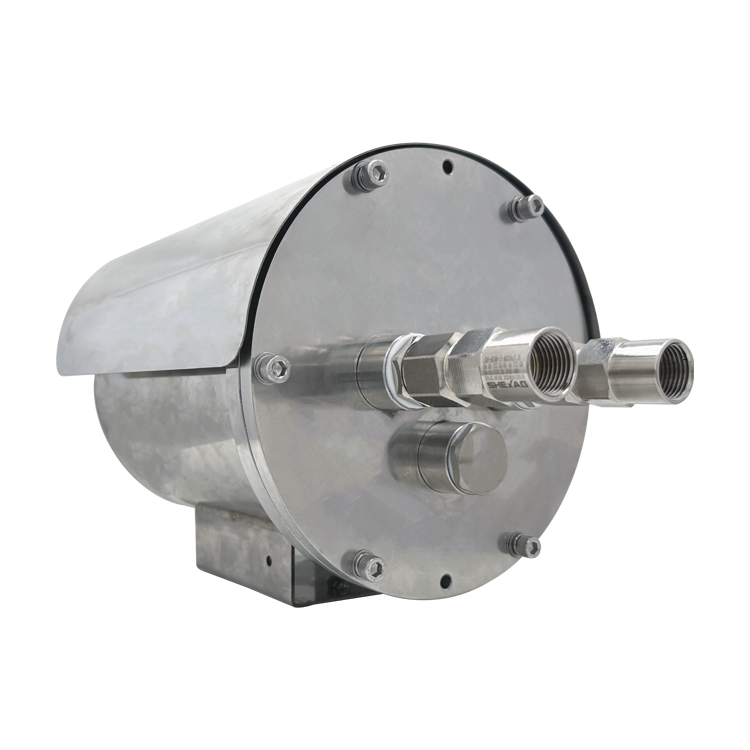

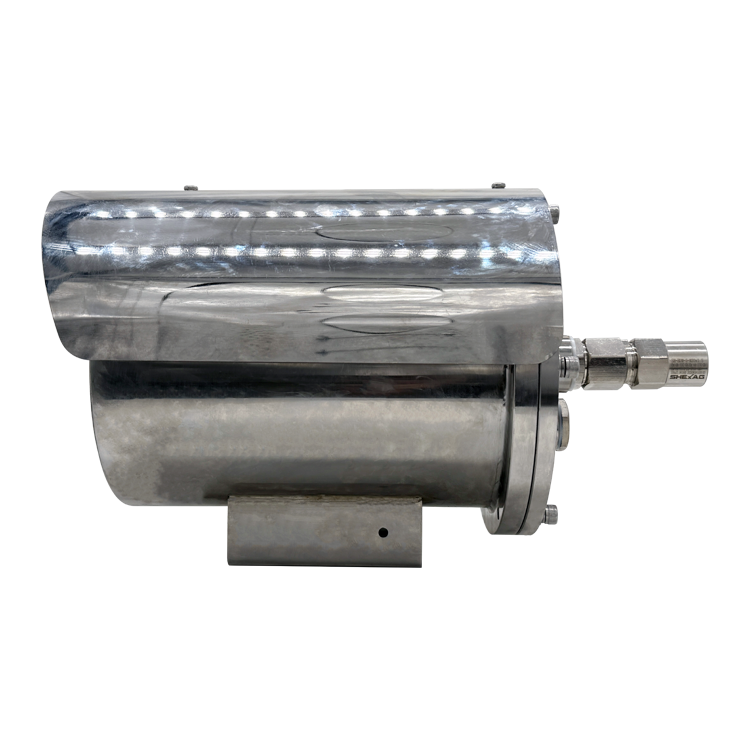

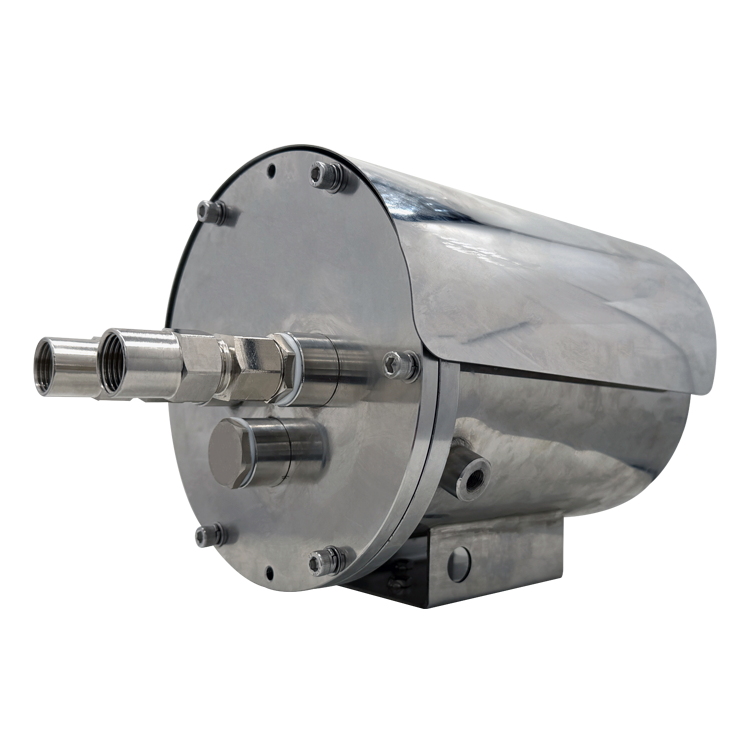

BS2S25KN One Casing

The BS2S25KN explosion-proof infrared thermal imaging temperature detection and analysis system is a specialized infrared camera product designed for gas and dust explosive environments. The system is primarily composed of an infrared thermal imaging module, infrared lens, explosion-proof protective cover, explosion-proof control box, explosion-proof image algorithm server, and client software.

The IR thermal imaging camera system employs full-range radiation temperature measurement technology, enabling simultaneous acquisition of multi-point temperature values. With a temperature measurement range of up to 2000℃, its self-developed temperature measurement algorithm ensures high-precision results. Certified for both gas and dust explosion protection, the system achieves an explosion-proof rating of Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db, making it suitable for use in explosive gas hazardous areas (Zones 1, 2) and dust explosion hazardous areas (A21, A22). With an IP68 protection level, it ensures long-term stable and safe operation in harsh working environments.

PRODUCT FEATURES

Passed professional explosion-proof test certification, suitable for gas explosion-proof and dust explosion-proof environments;

High protection level, the highest protection level can reach IP68;

The window is automatically purged, eliminating the need for manual regular window cleaning;

Full-screen real-time temperature measurement with wide coverage;

Independent of the system platform, you can log in directly to the web page to access images and configurations, and can directly output alarm signals to PLC or alarms;

Supports onvif protocol and can be connected to mainstream NVR;

Specifications

Model	Bs2s25kn
Visible resolution	200w 、 400w
Visible light magnification	20x , 25x , 30x
Infrared resolution	384×288	640×480
Infrared lens option	4 , 8 , 13 , 25	9.5 , 19 , 25 , 35
Infrared field of view	60 °, 45 °, 25 °, 15 °
Wavelength range	8 ～ 14μm
Thermal sensitivity (netd)	≤50mk@30 ℃
Frame rate	25hz
Focusing	Electric /
Image algorithms	Gamma correction, enhancement algorithm
Temperature measurement accuracy	±2 ℃ or ±2%
Temperature measurement range	Normal temperature range: -20 ℃ ~ 200 ℃ (standard) medium temperature range: 150 ℃ ~650 ℃ (optional) high temperature range: 350 ℃ ~1600 ℃ (optional) Ultra-high temperature range: 650 ℃ ~2000 ℃ (optional )
Network video compression format	H.264
Data types	H264， 16bit raw temperature data
Web standards	Gigabit ethernet / adaptive 100m/1000m
Protocol support	Ipv4/ipv6 , tcp , udp , ntp , http , rtsp , rtp , icmp , websocket , Onvif
Temperature output	Support analog 4--20ma , rs485 , modbus tcp/rtu
External trigger	Support rs485 level, ttl level
Protection level	Ip68
Size	Φ 180mm × 214mm
Installation	Equipped with ptz bracket
Weight	≤ 10kg
Operating temperature	-20 ℃ ～ + 60 ℃
