PDG300

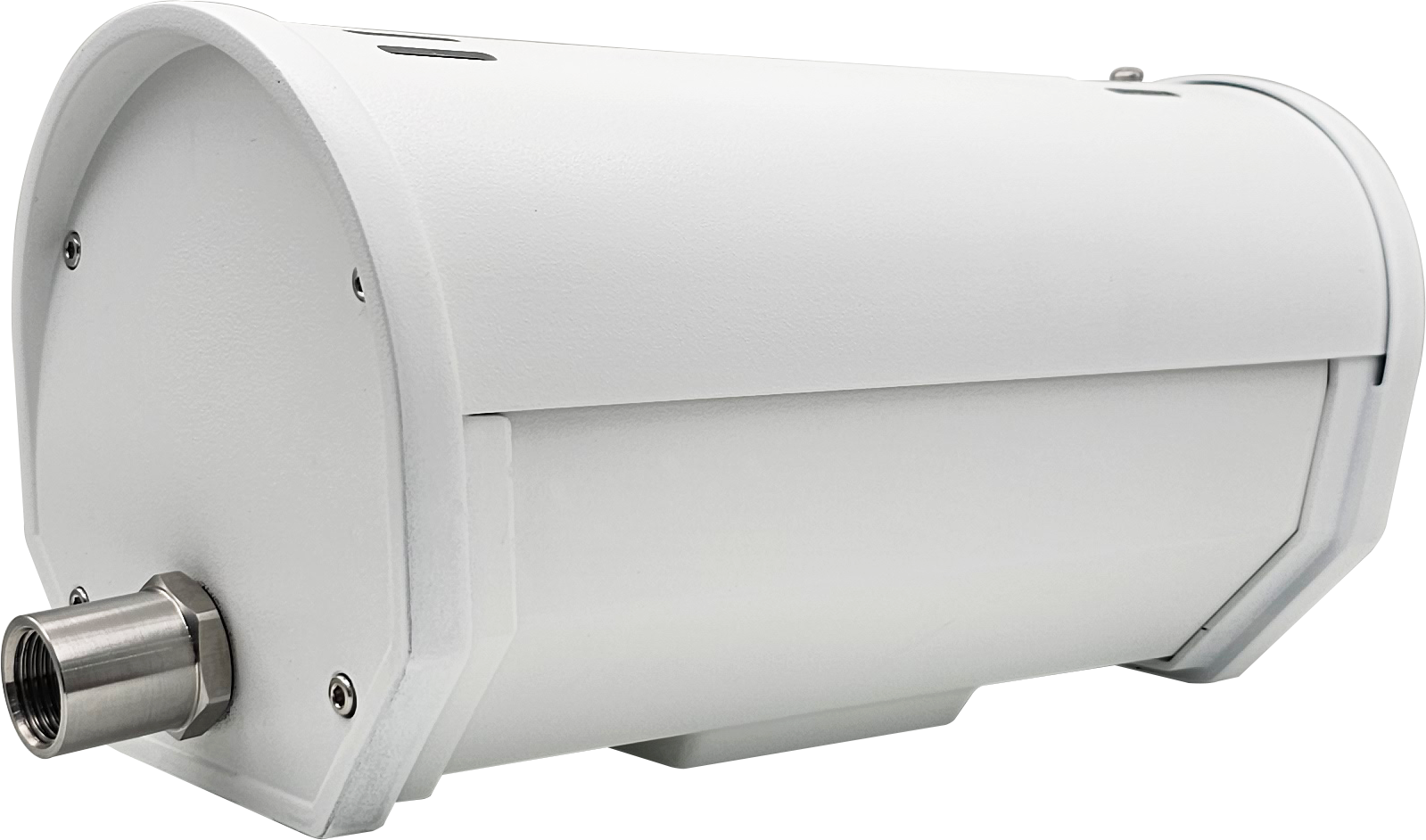

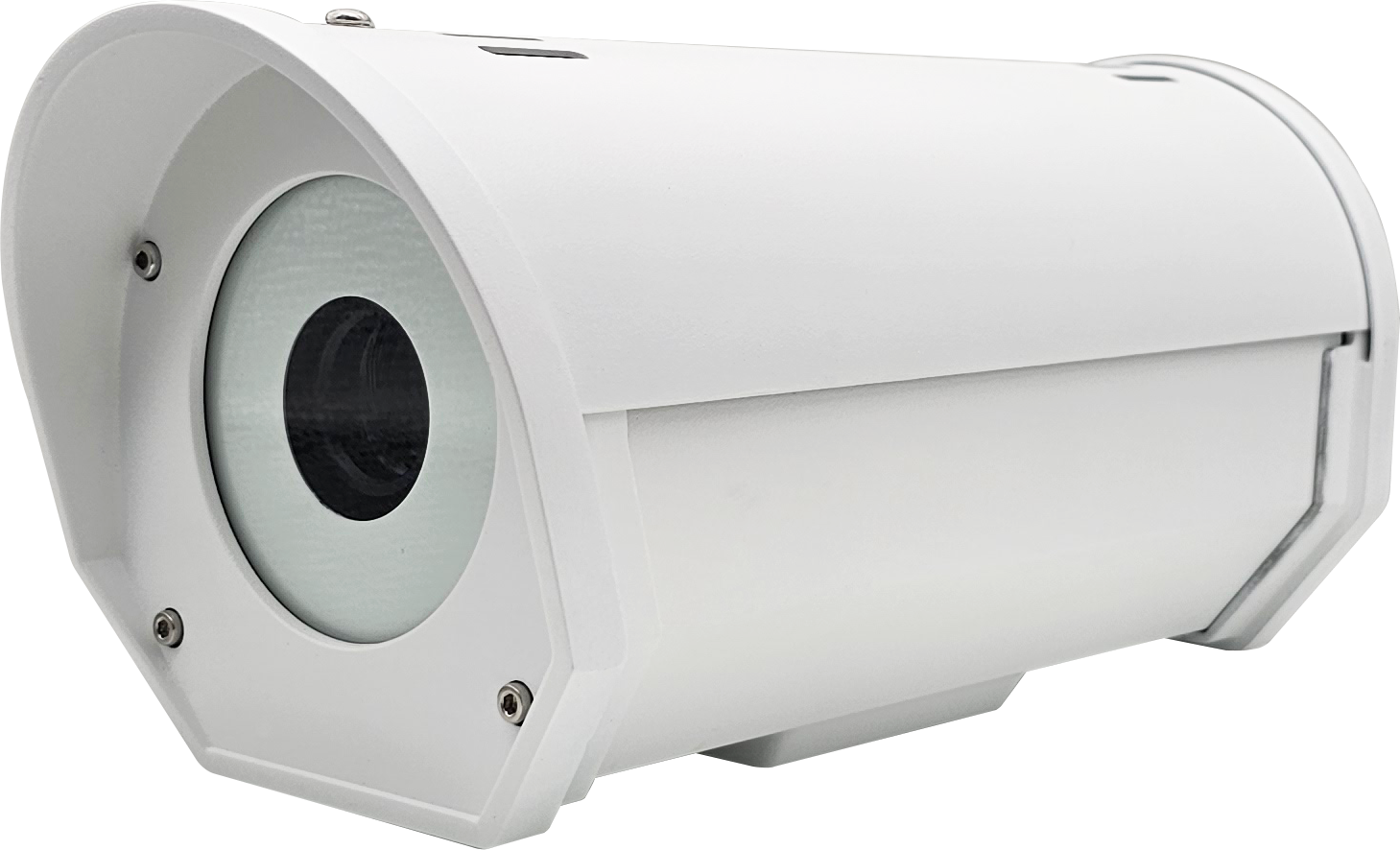

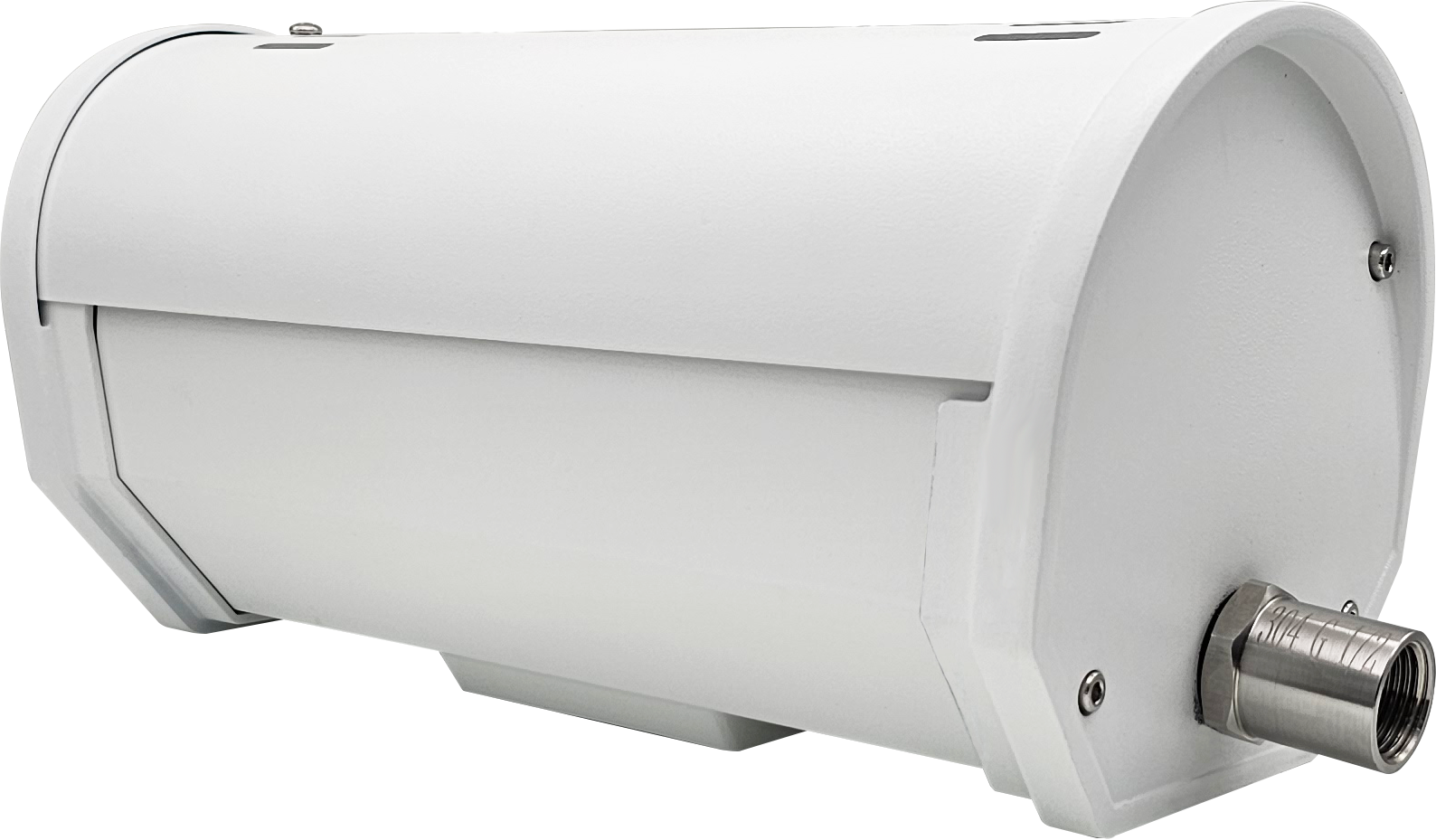

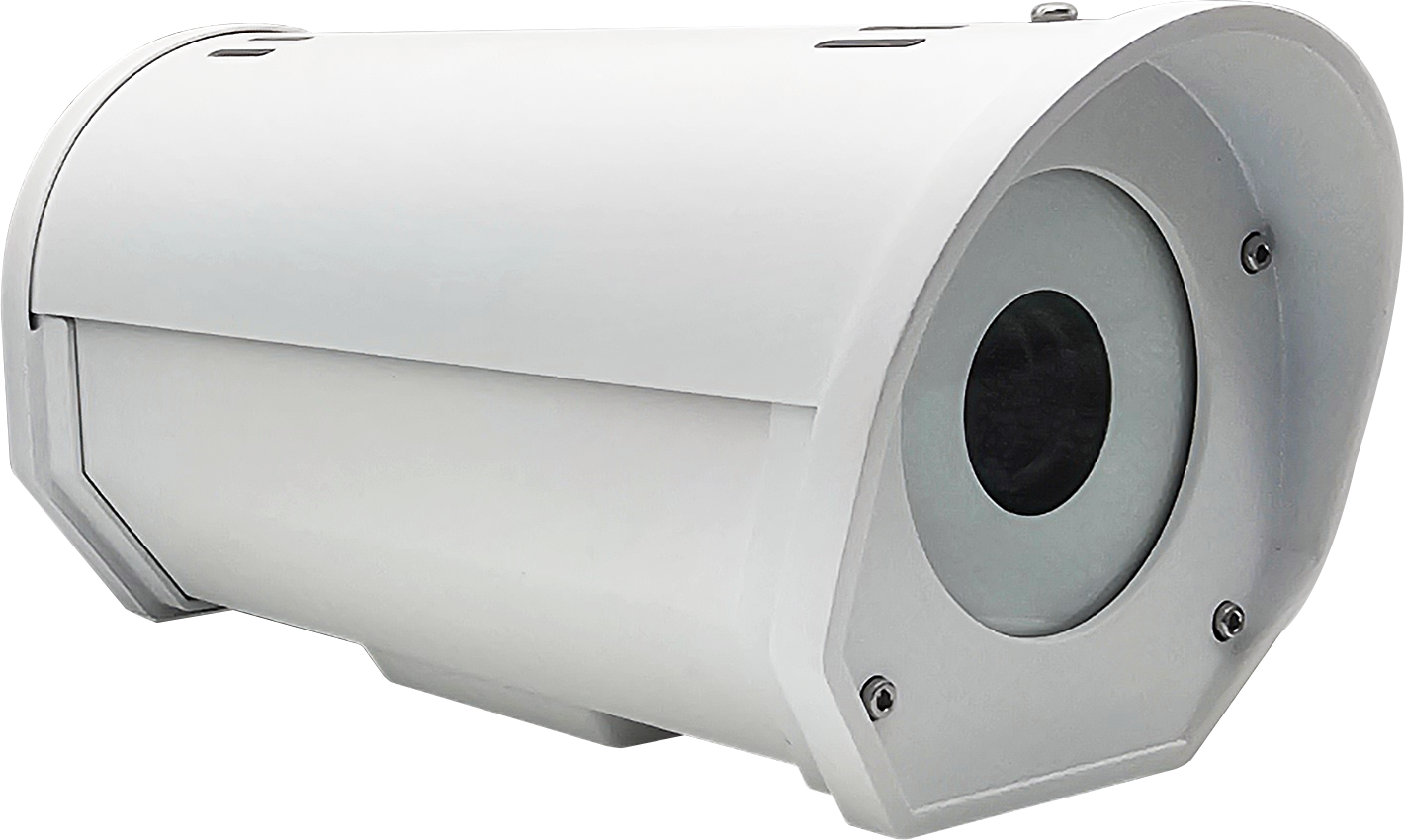

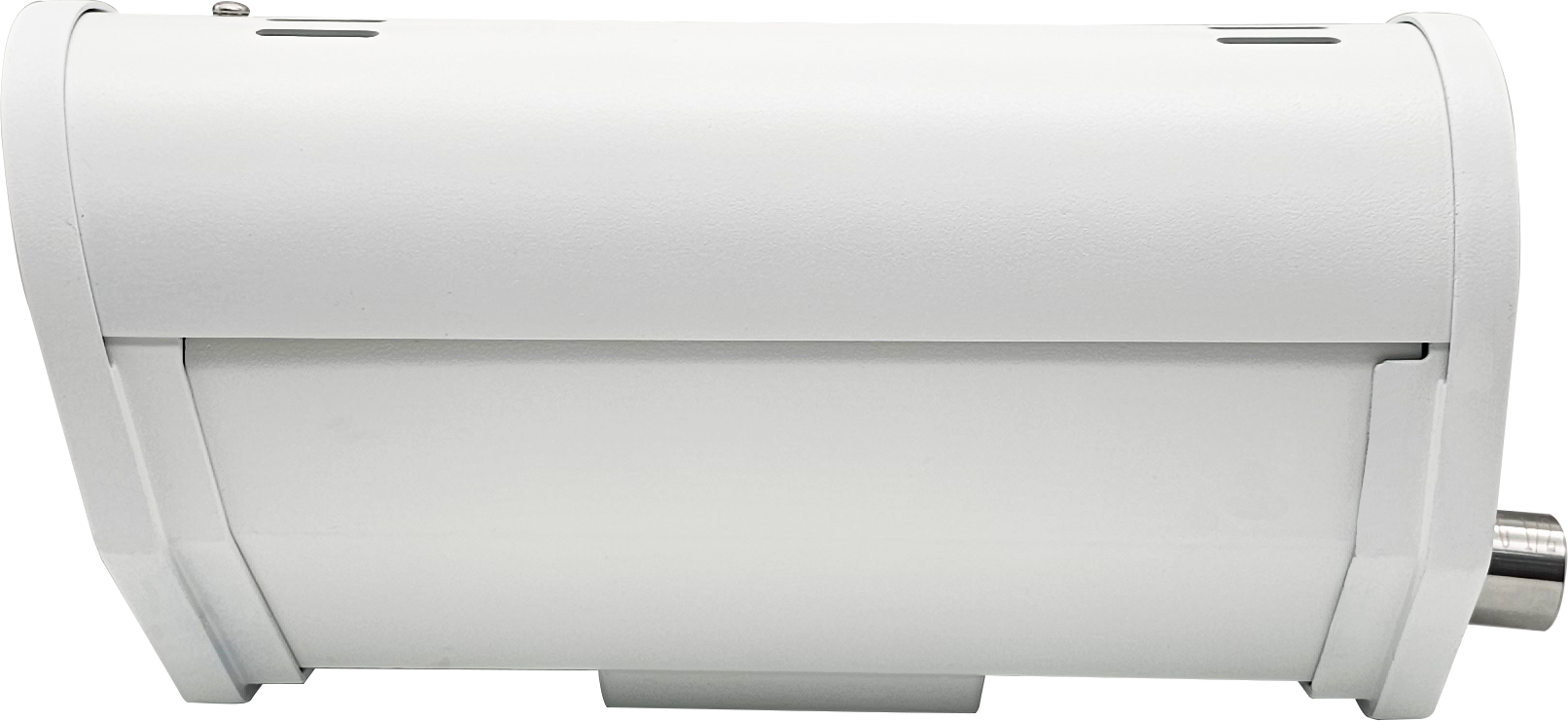

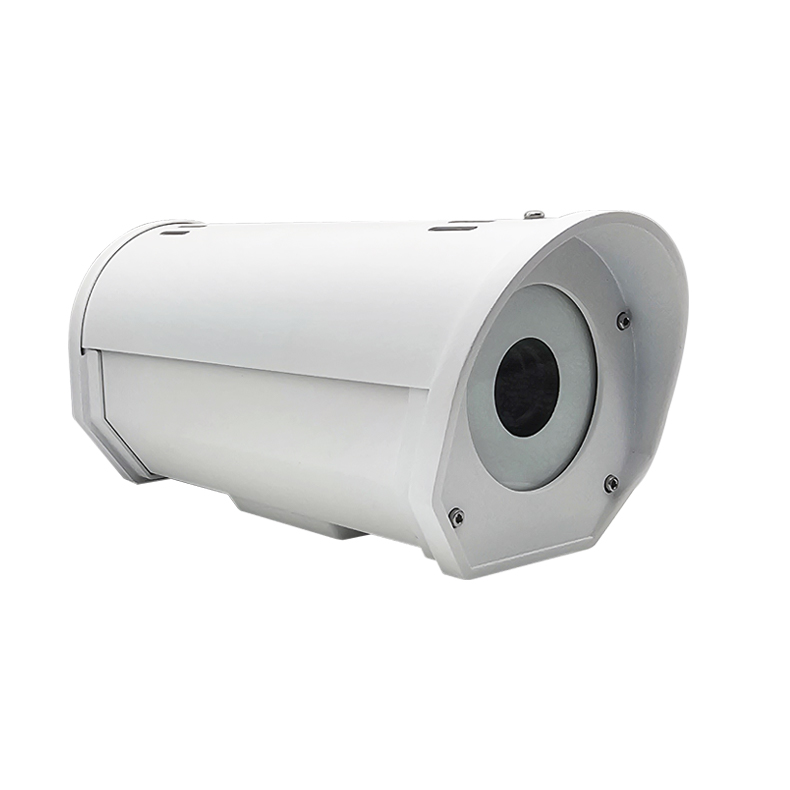

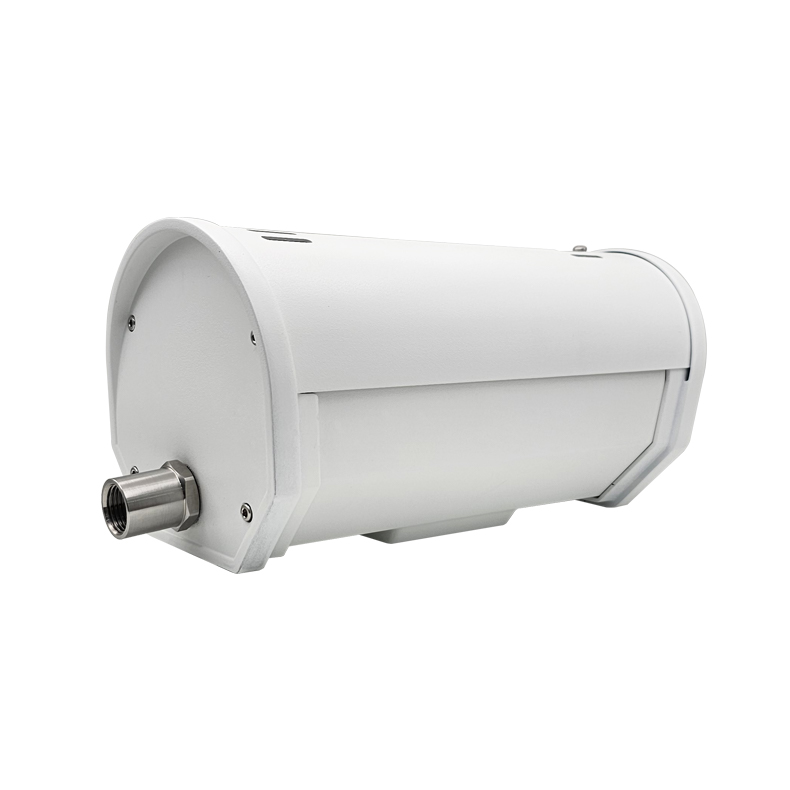

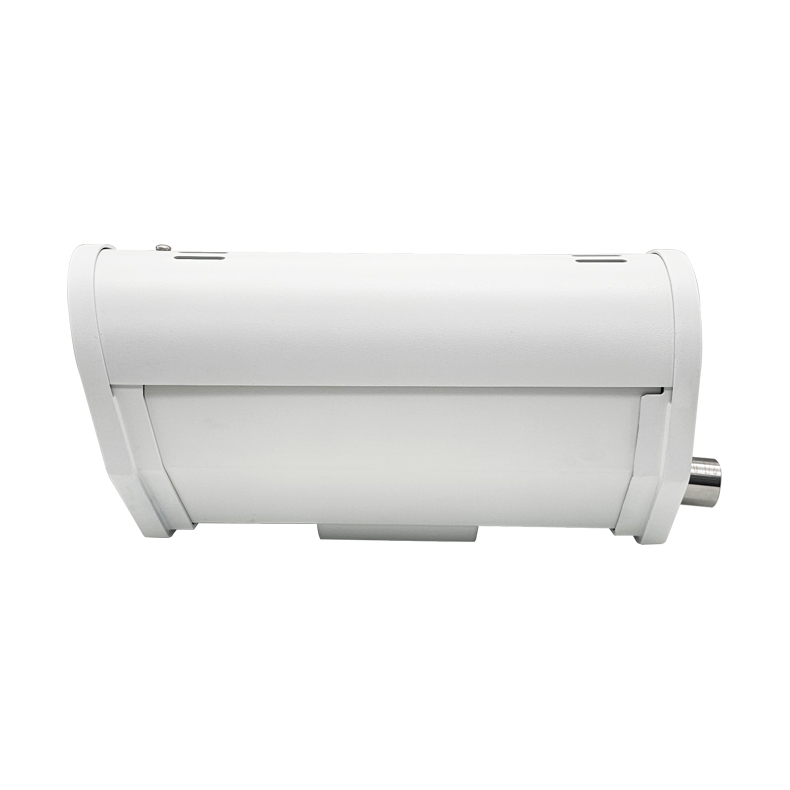

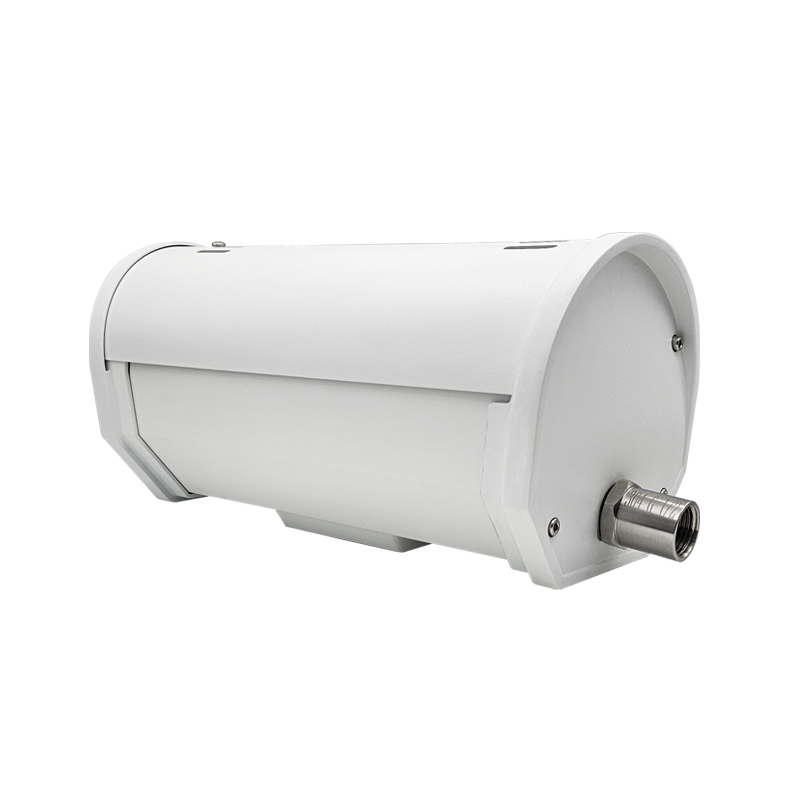

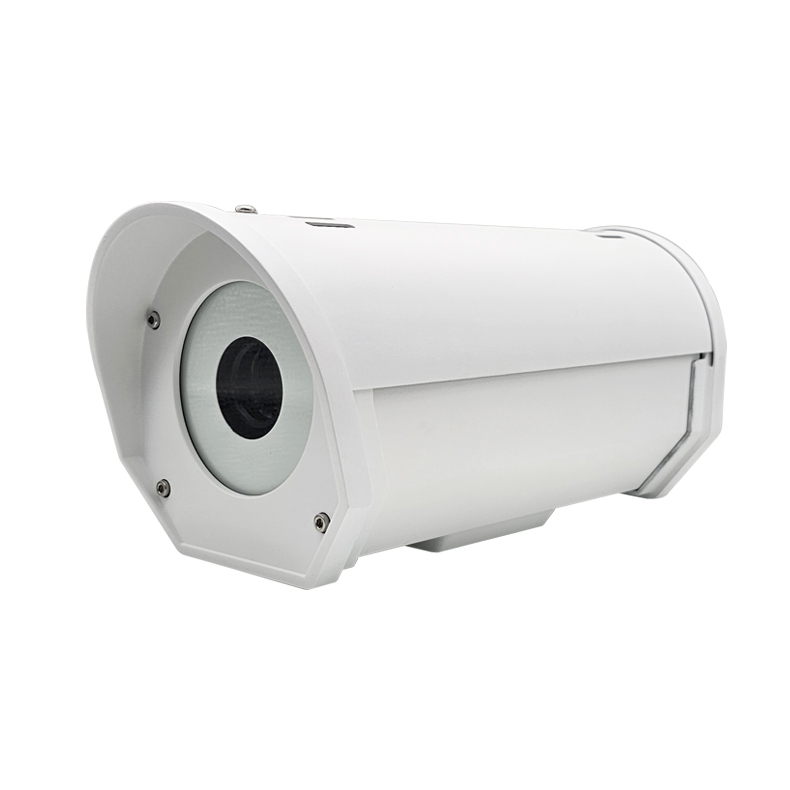

The PDG300 high-protection infrared thermal camera detection and analysis system, thermal imaging CCTV camera is an thermal imager camera product specially designed for use in harsh environments. The system is mainly composed of an ir thermal imaging camera movement, an infrared lens, a metal protective cover, a thermal imager control cabinet, an image algorithm server and client software.

The system adopts full-range radiation temperature measurement technology, which can obtain multi-point temperature values at the same time; the temperature measurement range can reach up to 2500 ℃; self-developed temperature measurement algorithm, high temperature measurement accuracy; metal protective cover design, IP66 protection level; system software can realize target infrared thermal map display, thermal data collection, storage and analysis, high and low temperature alarm and positioning, temperature tracking and other functions. It has been widely used in many industries such as steel metallurgy, non-ferrous metals, electricity, cement, glass, etc.

PRODUCT FEATURES

330g lightweight body，controlled with one hand，held with comfort，carried with no burden,exploring the unknown wonders heartily

High performance built-in 12um thermal detector

Built-in battery，supporting external charging

Supporting tripod fixation；

4 lens to choose：9.7mm、15mm、19mm、25mm

When the ambient temperature reaches 25 ℃ and WiFi and CVBS functions are turned off, it can operate continuously for 8 hours; When WiFi and CVBS functions are turned on, it can run continuously for 6 hours.

Specifications

model	PDG300-NSxxEx (Single infrared )
Infrared resolution	384×288	640×480	384×288	640×480
Infrared lens option	8 , 13 , 25 , 35	8 , 19 , 25 , 35	8 , 13 , 25 , 35	8 , 19 , 25 , 35
Infrared field of view	45 °, 25 °, 15 °, 10 °
Infrared wavelength range	8 ～ 14μm
Thermal sensitivity (NETD)	≤50mk@30 ℃

Frame rate	25Hz
focusing	Electric / Automatic
Image Algorithms	Gamma correction, enhancement algorithm
Temperature measurement accuracy	±2 ℃ or ±2%
Temperature measurement range	-20 ℃ ～ 1600 ℃ (need to be divided into sections) , can be expanded to 2500 ℃
Video compression format	H.264/H.265
Data Types	H264 , H265 , 16Bit Raw temperature data
Web Standards	Gigabit Ethernet / Adaptive 10M/100M/1000M
Protocol support	IPv4/IPv6 , TCP , UDP , NTP , HTTP , RTSP , RTP , ICMP , WebSocket , ONVIF
Temperature output	Support analog 4--20mA , RS485 , Modbus TCP/RTU
External trigger	Support RS485 Level, TTL Level
Protection level	IP66
size	Φ145mm×305mm
Installation	Equipped with PTZ bracket
weight	PDG300-NS≤3Kg
Operating temperature	-20 ℃ ～ + 60 ℃
