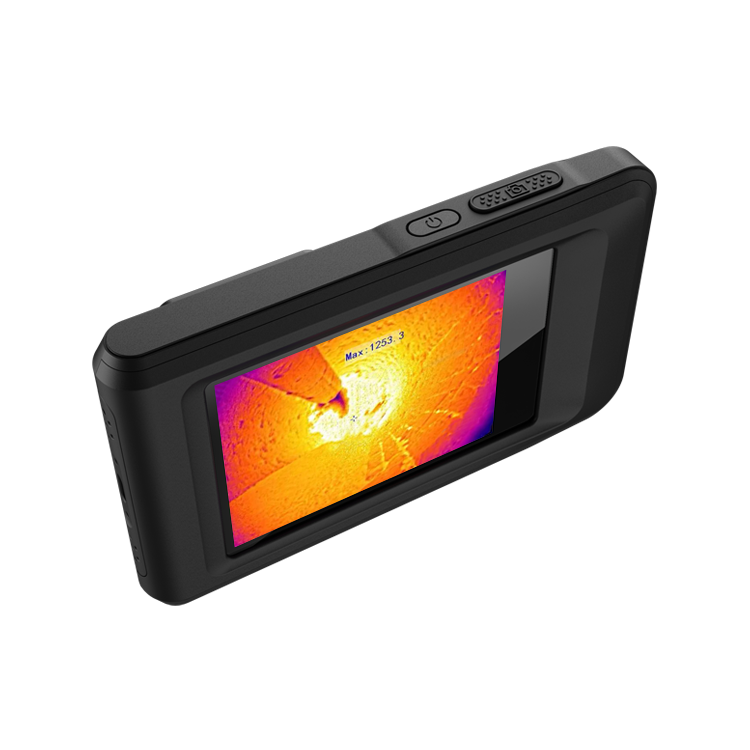

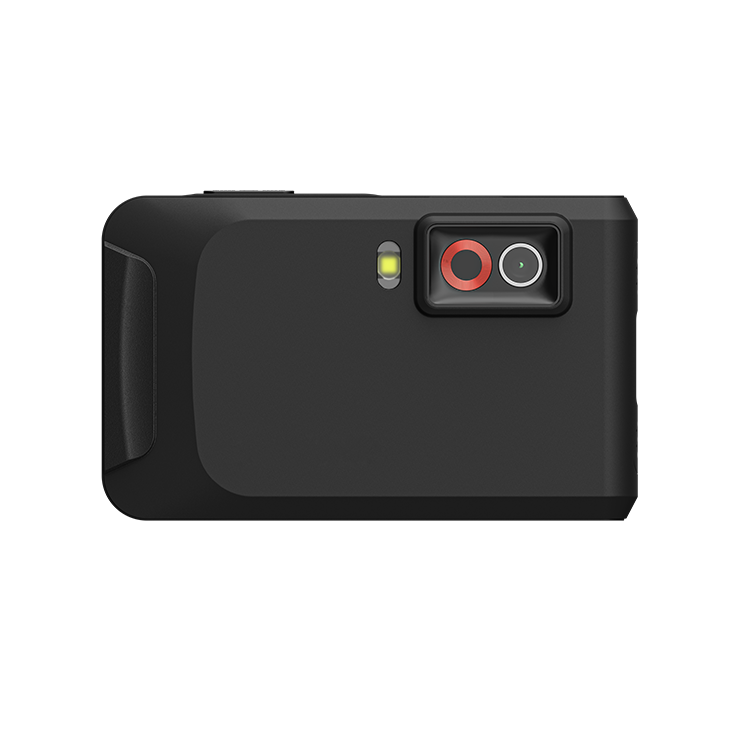

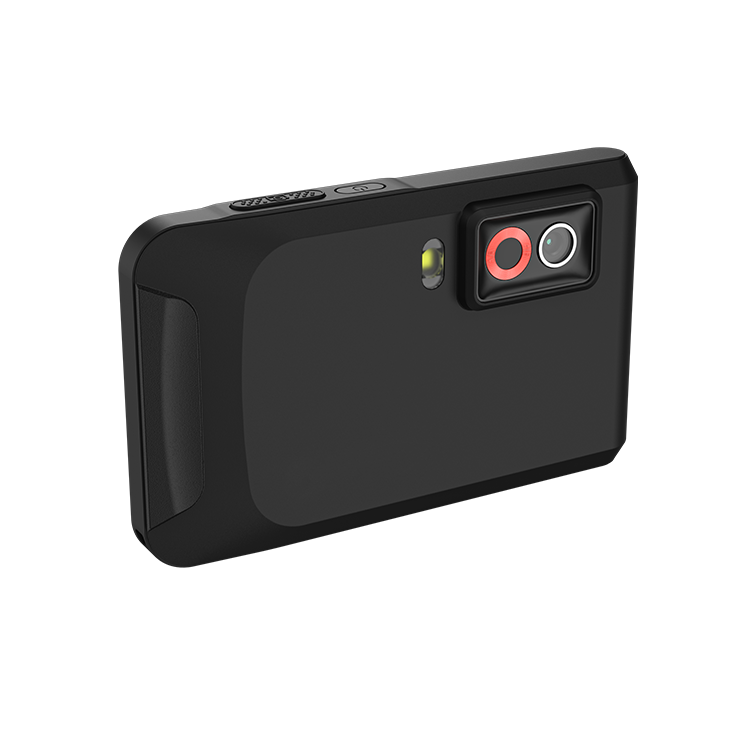

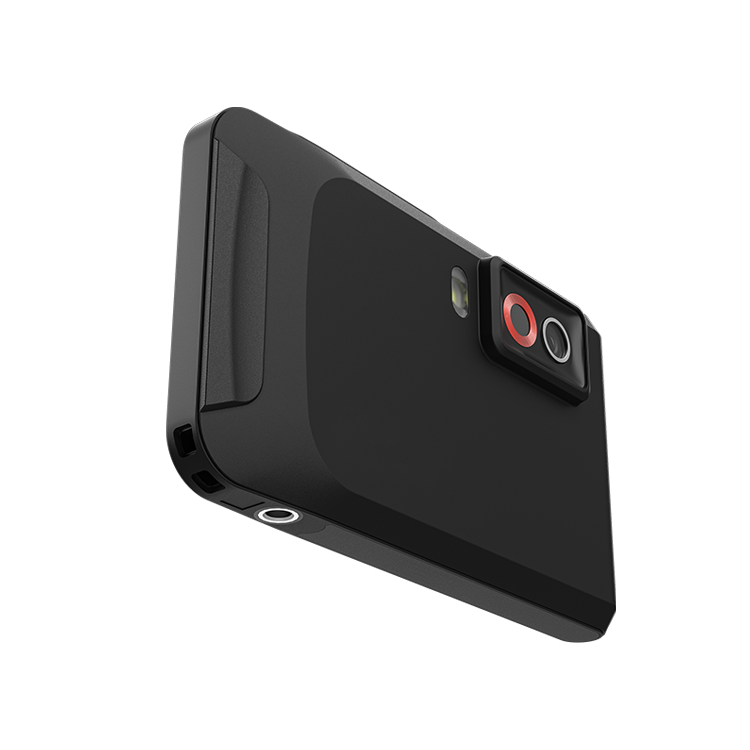

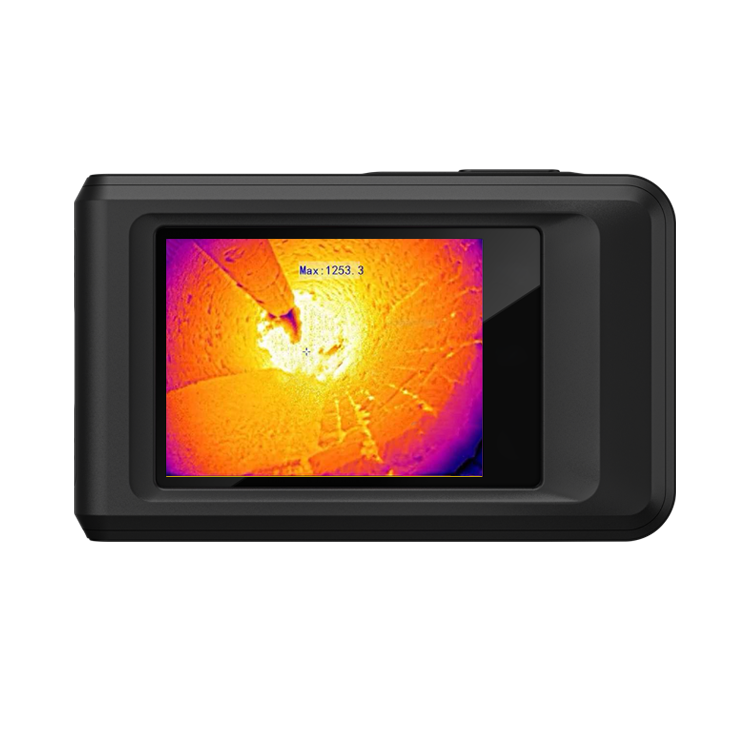

Pocket-sized infrared thermogrphy camera equipped with a 256X192 infrared detector can provide clearer infrared images and higher temperature measurement accuracy. The thermal imaging camera handheld with 8-megapixel visible light camera module supports thermal imaging and visible light video photography and recording functions. Paired with a powerful professional mobile APP and computer software, handheld ir camera offers every engineer more specialized infrared thermal imaging services.
| Sensor Type | Uncooled Detector |
| Response Wavelength | 7.5~14um |
| NETD(Noise-Equivalent Temperature Difference) | <50mk(@25°℃，F#=1.0) |
| Maximum lmage Size | 256x192 |
| Thermal lmaging Lens Focal Length | 3.5mm |
| Minimumlmaging Distance | 0.3m |
| Field of View (FOV) | 50°x37.5° |
| DigitalZoom | 1X～4X, minimum change0.1X |
| Frame Rate | 25Hz |
| Pixel Size | 12um |
| F-Value | F1.1 |
| Temperature Measurement Range | -20°C~400°C |
| Precision | 士2°C or +2%,take the maximum value |
| Spatial Resolution(lFOV) | 3.43mrad |
| Maximum lmage Size | 3264x2448 |
| Picture Resolution | 1600x1200 |
| Video Resolution | 1600x1200 |
| lmage Modes | 3.5''LCDcapacitive touch screen640x480 |
| lmage Modes | Supports 7 false -color modes such as rainbow, iron - red, etc. |
| Display Modes | Visible light,thermal imaging, dual-light fusion, picture -in -picture |
| Temperature Measurement Rules | Supports hot spot, cold spot, center point |
| UVC Projection | Supported |
| Battery Capacity | 2100mAh |
| Charging Time | 1.5 hours to charge to 94% power, 2.5 hours to fully charge |
| Photography | Supported |
| Video Recording | Thermal imaging, visible light, dual -light fusion, picturein - picture |
| lllumination | Supported |
| Text Annotation | Supported |
| Interface Language | Chinese |
| Wi-Fi | Supported |
| Storage | 16GB |
| Hardware Interface | TYPE-C |
| Battery Type | Lithium -ion battery |
| Battery Working Time | 4h |
| Tripod Mounting | Supported, standard UNC¼” -20 Hole position |
| Electromagnetic Compatibility(Emc) | GB/T17799.2，GB17799.3-2012 |
| Shock/Vibration | 15g(GB/T2423.5-2019/IEC60068-2-27:2008) 1g(GB/T2423.10-2008/IEC60068-2-6:1995) |
| Operating Temperature And Humidity | 10°C~50°C，<95% |
| Ingress Protection | IP54 |
| Drop Resistance Rating | 2m |
| Weight | 218g |
| Size | 138.5mmx85.2mmx23.6mm |
| Number of image files | About 60,000 sheets |
| lmage file format | JPEG |
| Video storage capacity | 54 hours |
| Video file format | MP4 |
