BS2Z25KN Online double optical explosion-proof infrared thermal imaging camera of HJKIR

BS2Z25KN Double Optical

BS2Z25KN dual-light explosion-proof online temperature measurement and detection system is a new generation of explosion-proof monitoring equipment, consisting of an explosion-proof dual-tube pan/tilt, a 30x 4 million 1/2.8" CMOS ICR day and night network high-definition integrated machine, and a 17μm uncooled infrared thermal imager. It uses a more advanced manufacturing process and a mature quality management system as a guarantee, making the product's quality, performance and appearance in the leading position among similar products. This product is used in environments with flammable and explosive gases and combustible dust to achieve the purpose of clear control of the site.
The device selection of the BS2Z25KN dual-light explosion-proof online temperature measurement and detection system fully considers the requirements of high and low temperature working performance to ensure that the whole machine has excellent environmental adaptability.

PRODUCT FEATURES

Highly integrated explosion-proof PTZ and explosion-proof decoder, small size and light weight

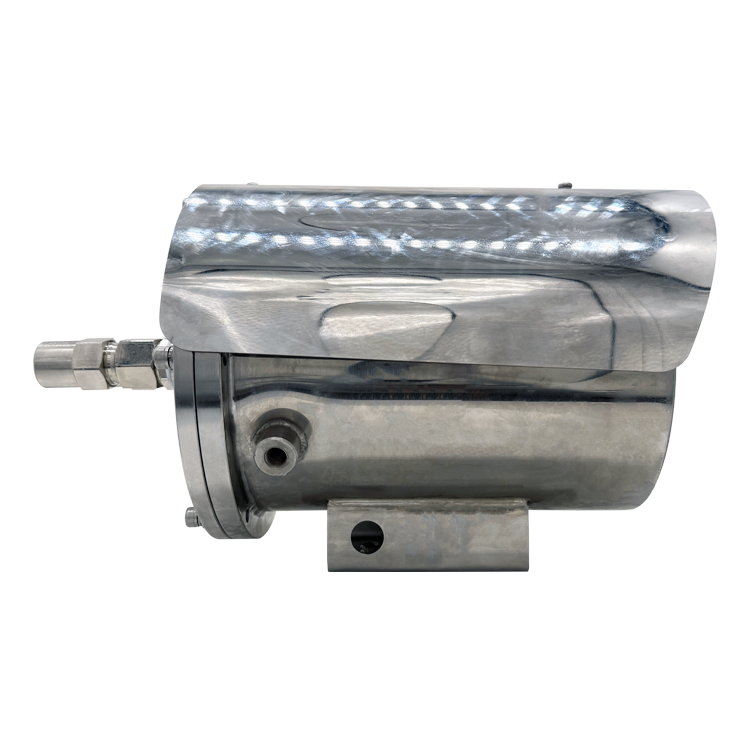

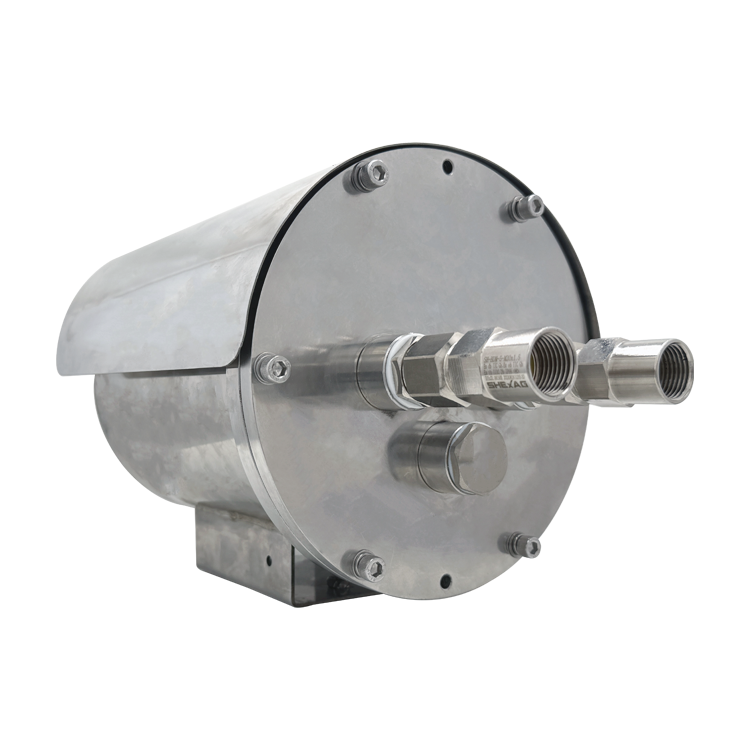

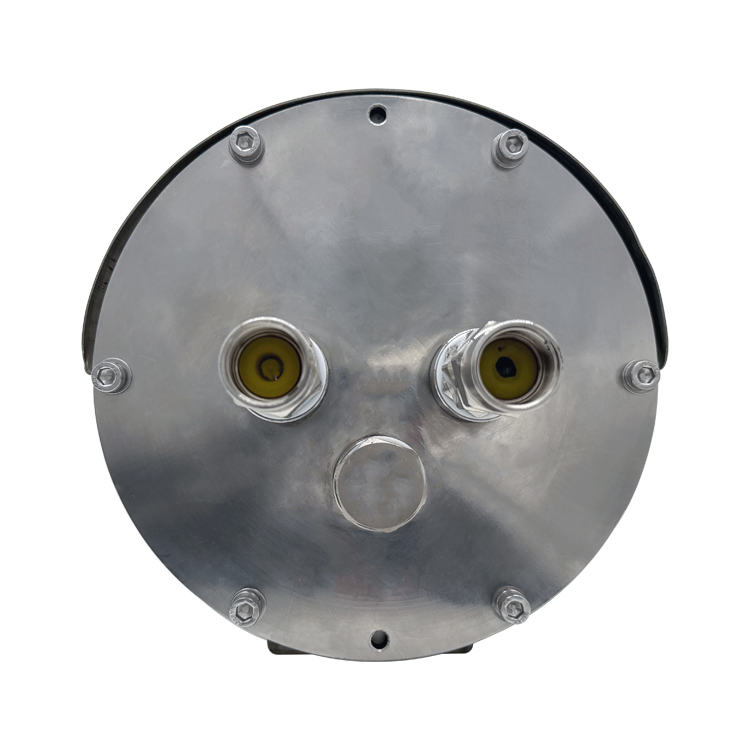

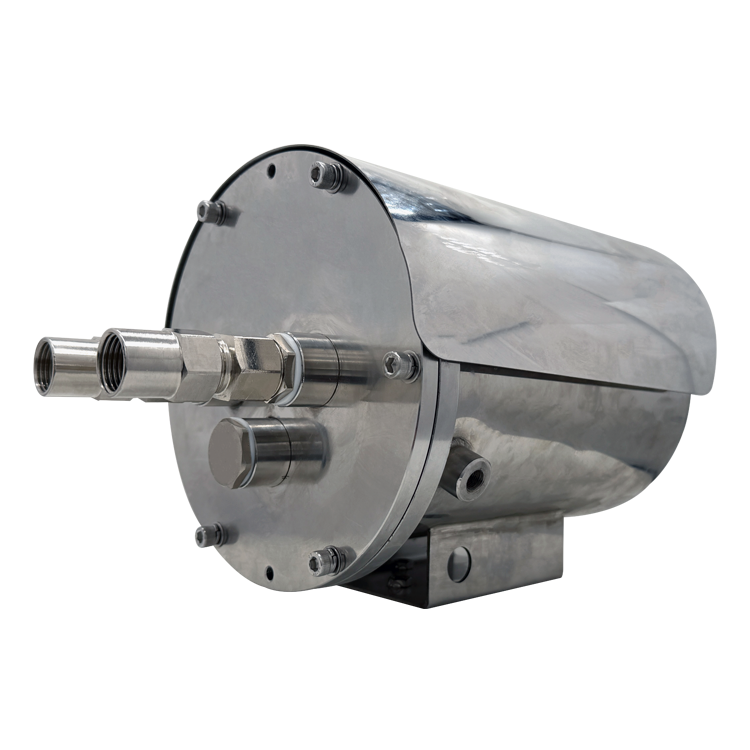

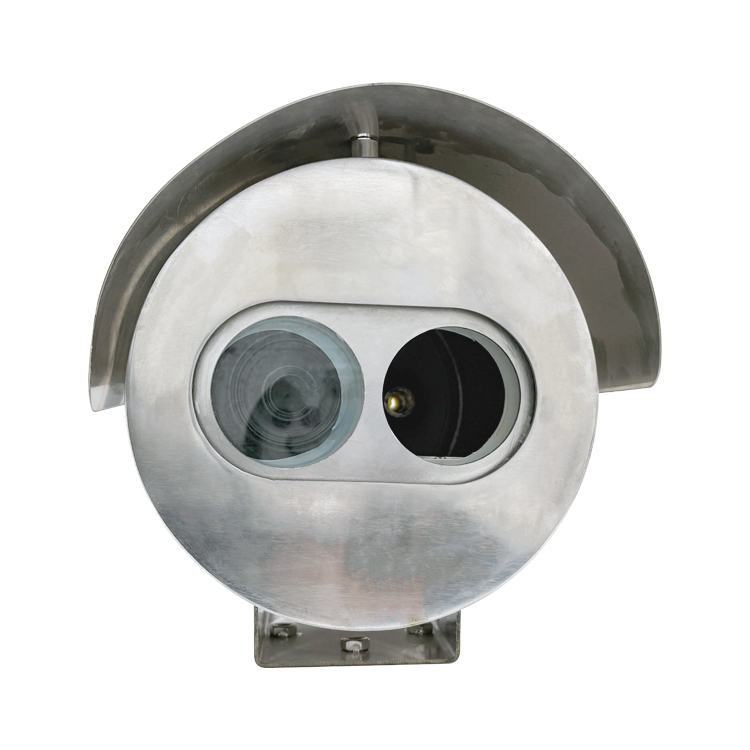

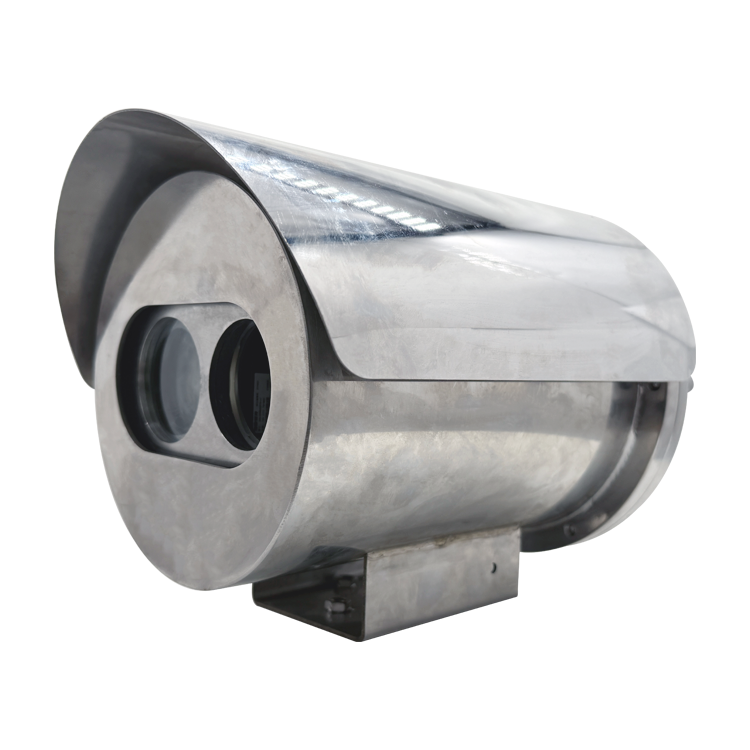

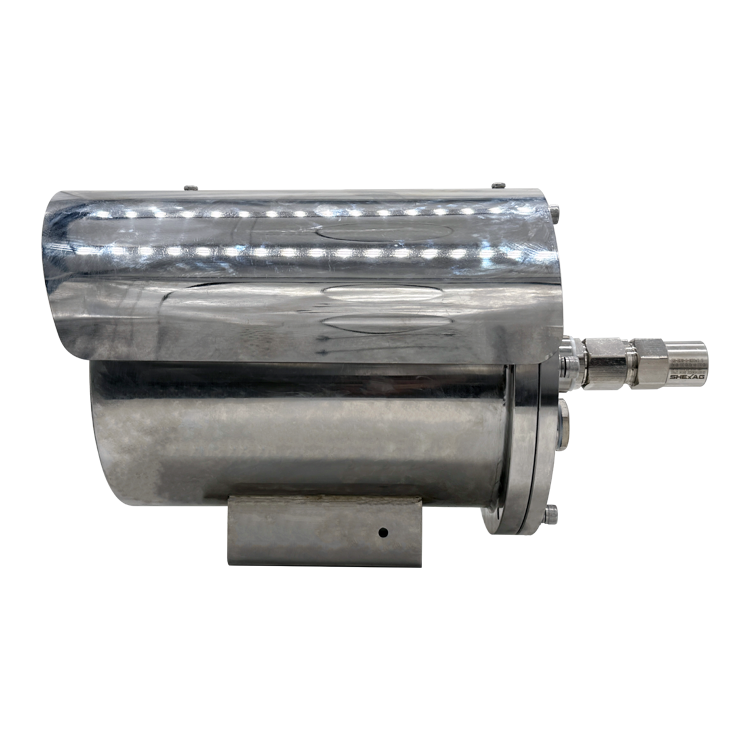

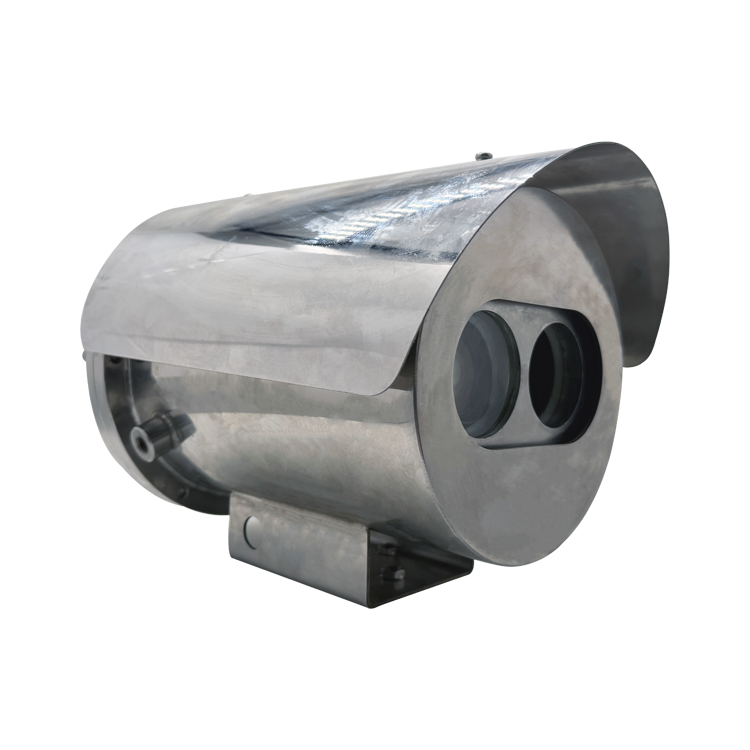

Made of stainless steel, the windows are made of double-sided waterproof film tempered glass and germanium glass, which has good shielding and heat dissipation effects

Built-in infrared thermal imaging thermometer measures temperature accurately, with clear images, and visible light supports high-definition transmission

Stable operation, adaptable to harsh environment, support automatic cruise mode, automatic warning

A single network cable transmits infrared temperature and visible light images simultaneously, supports various NVRs, has low network bandwidth usage, and is flexible in networking.

Complete and rich SDK development package to support users' rapid secondary development

Specifications

Detector Type	Uncooled Focal Plane Microbolometer
Number Of Pixels	384x288/640x480
Pixel Spacing	17μm
Wavelength Range	8～14μm
Thermal Sensitivity (Netd)	≤50mk@30℃
Frame Rate	25Hz
Focal Length	8mm、13mm、19mm、25mm、35mm（Optional）
Temperature Measurement Range	Normal Temperature Range: -20℃～200℃ Medium Temperature Range: 50℃～800℃ High Temperature Range: 50℃～1600℃
Temperature Measurement Accuracy	±2℃/±2%
Sensor Type	1/2.8 " Progressive Scan Cmos
Resolution	1920x1080
Focal Length	4 . 8 ~ 120mm
Aperture Value	F1.6 ~ F3.5
Minimum Illumination	Color: 0.05Lux @ (F1.6, Agc On)
Horizontal Upward Viewing Angle	57.6-2.5 Degrees (Wide Angle-Telephoto)
Close Shooting Distance	100mm-1500mm (Wide Angle-Telephoto)
Ptz Protection	Explosion-Proof
Shield Level	Explosion-Proof
Explosion-Proof Grade	Ex d Iic T6 Gb/Ex Td A20 Ip68 T80°C
Color Palette	Multiple Color Palettes, Including White Hot, Black Hot, Iron Red, Rainbow, Etc.
Else	With Non-Uniformity Correction Function, Automatic Correction After Power On
Client Software	Provide Neutral Client Software, Through Which You Can Remotely Set Various Function Parameters Of The Thermal Imager, Such As Color Palette, Alarm Threshold, And Image Parameter Configuration.
Protocol Support	Tcp/Ip, Http , Rtp , Rtsp , Ntp , Upnp , Onvif, Udp
Operating Temperature	-40°C~60°C
Storage Temperature	-45°C~70°C
Temperature Shock Resistance	5°c/Min(-40°c~60°C)
Power Supply	Ac220V
Power Consumption	≤100W
Communication Interface	Rj45/Rs485
Dimensions	498mmx295mmx378mm(Lxwxh）
Weight	<=45kg
