PFCDG300 infrared thermal imaging product OEM/ODM HJKIR

HIRDA-HT

HIRDA-HT High-Temperature Infrared Thermal Imaging Temperature Detection & Analysis System

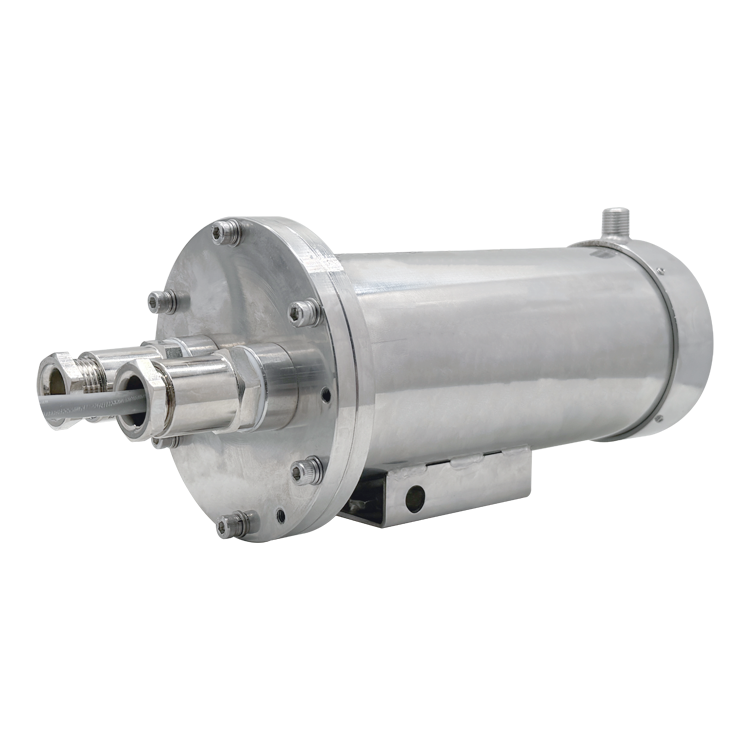

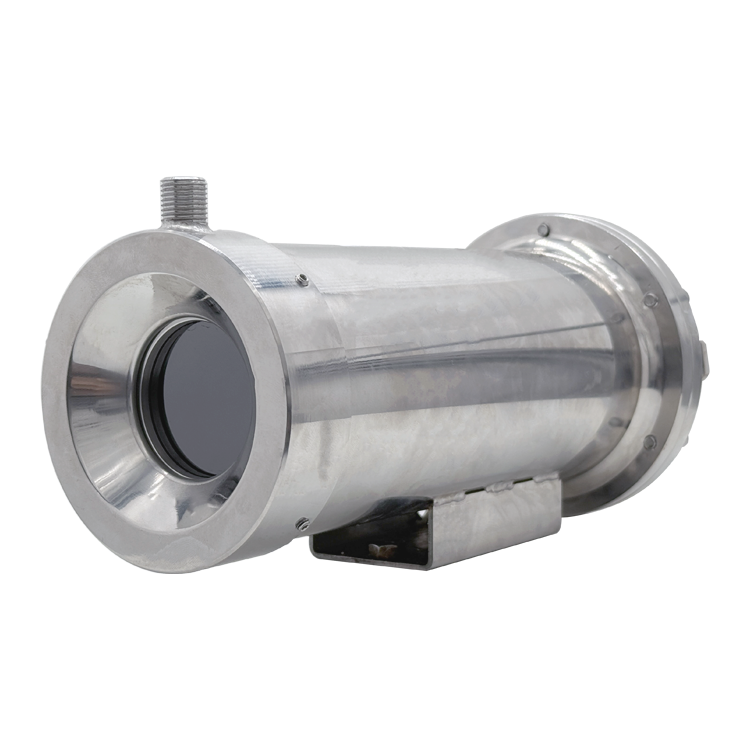

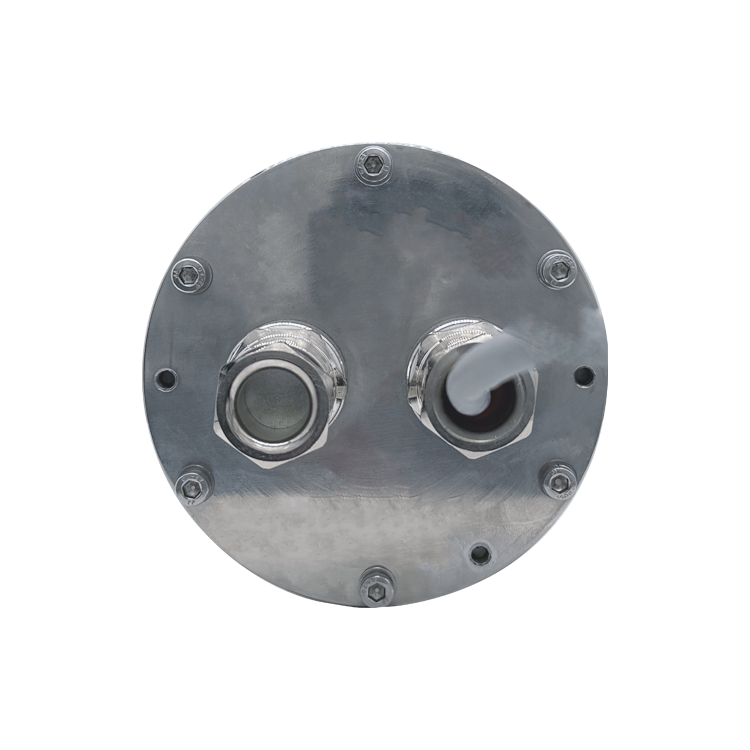

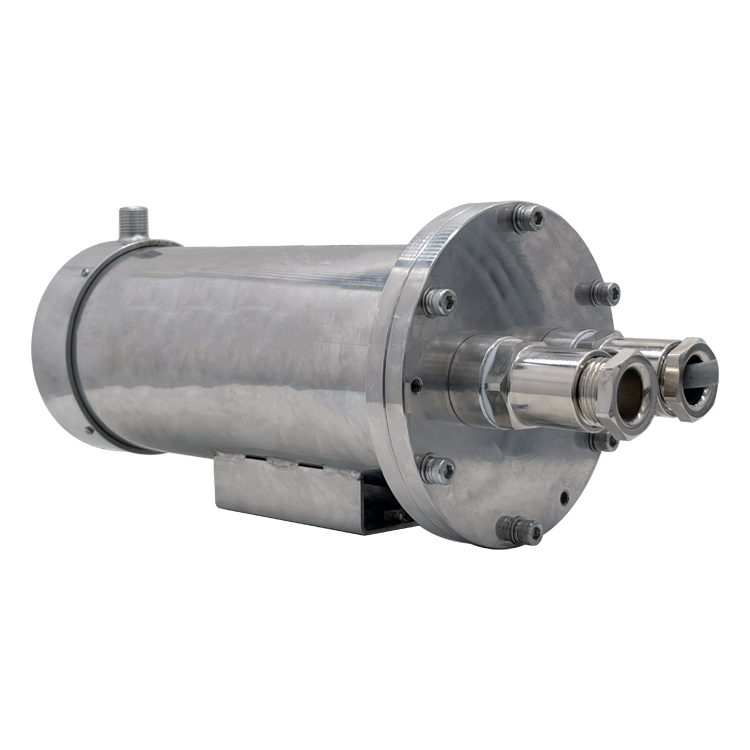

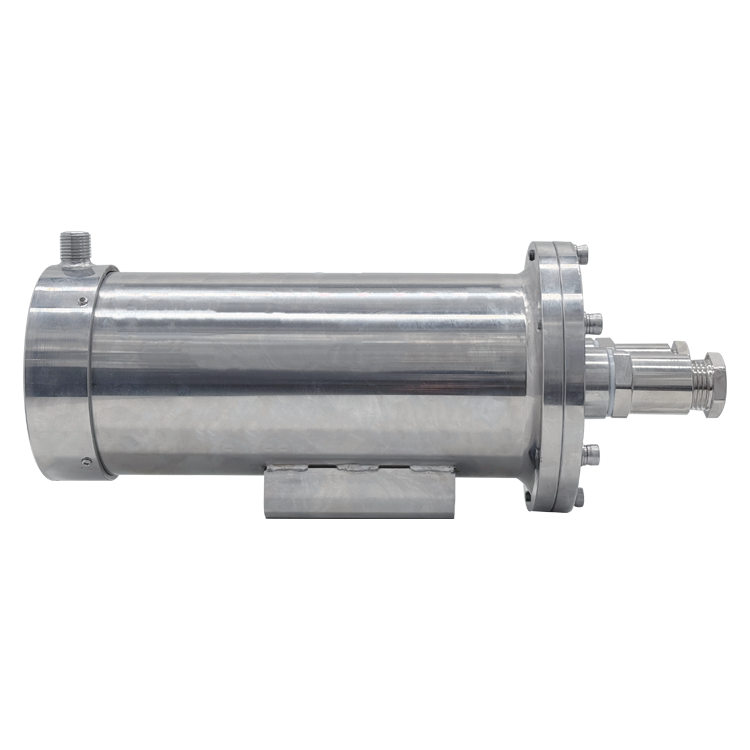

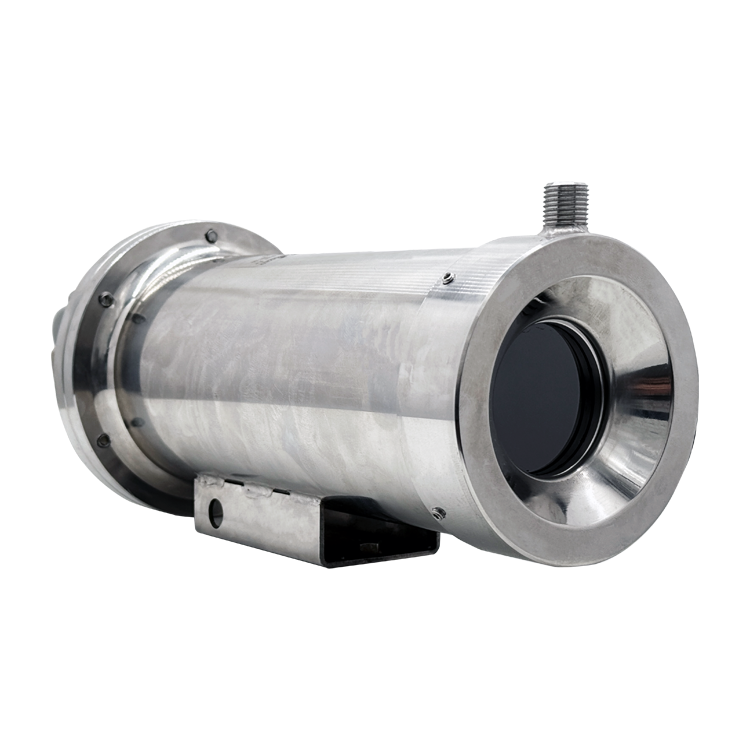

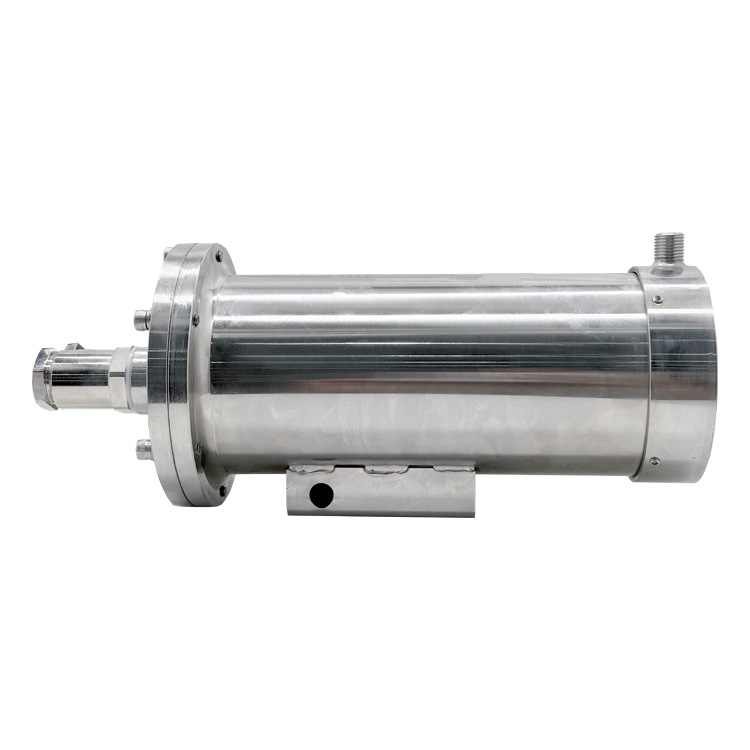

A specialized infrared thermal imaging solution designed for high-temperature environments, the system integrates an infrared thermal imaging module, infrared lens, high-temperature resistant metal shield, control box, image algorithm server, and client software.

Featuring full-radiation temperature measurement technology, it enables simultaneous acquisition of multi-point temperature data with a range up to 2500°C. The self-developed temperature algorithm ensures high-precision measurements. Its water-air cooled stainless steel shield with IP66 protection supports stable operation in environments up to 500°C. The system software offers functions including infrared thermal map target display, thermal data collection/storage/analysis, high-low temperature alarm & positioning, and temperature tracking.

Widely applied in high-temperature furnace monitoring for metallurgy, power, cement, glass, and other industries.

PRODUCT FEATURES

High temperature resistant design, can withstand up to 500℃ ambient temperature

Independent of the system platform, you can log in directly to the web page to access images and configurations, and can directly output alarm signals to PLC or alarm devices

Support GB28181, onvif protocol, can be connected to mainstream NVR

Automatic window cleaning, no need for manual window cleaning

The temperature measurement range can be customized, with a maximum support of -40℃ to 2500℃

Support modbus protocol, can be connected with DCS system to transmit temperature data

Specifications

model	PSFCDG300-NS
Lmage resolution	384×288/640×480
Lens options	4、8、13、25
field of view	60°、45°、25°、15°
Wavelength range	8～14μm
Thermal Sensitivity(NETD)	≤50mk@30℃
Frame rate	25Hz
focusing	Electric/automatic
Lmage algorithm	Gamma correction and enhancement algorithm
Temperature measurement accuracy	±2℃/±2%
Temperature Measurement range	-20℃~ 1600℃(need to be segmented ), can be extended to 2500℃
Internet videocompressionformat	H.264/H.265
data type	H264、H265、16Bit raw temperature data
network standards	Gigabit network /adaptive 10M/100M/1000M
Protocol support	IPv4/IPv6、TCP、UDP、NTP、HTTP、RTSP、RTP、ICMP、WebSocket、ONVIF
Temperature output	Support analog 4--20mA,RS485, Modbus-TCP/RTU
external trigger	Support RS485 level, TTL leve!
Protection level	IP66
size	Φ127mm×300mm
Cooling method	water air cooling/air cooling
Installation method	Equipped with pan/tilt bracket
weight	≤7Kg
Working temperature	-20℃～500℃
