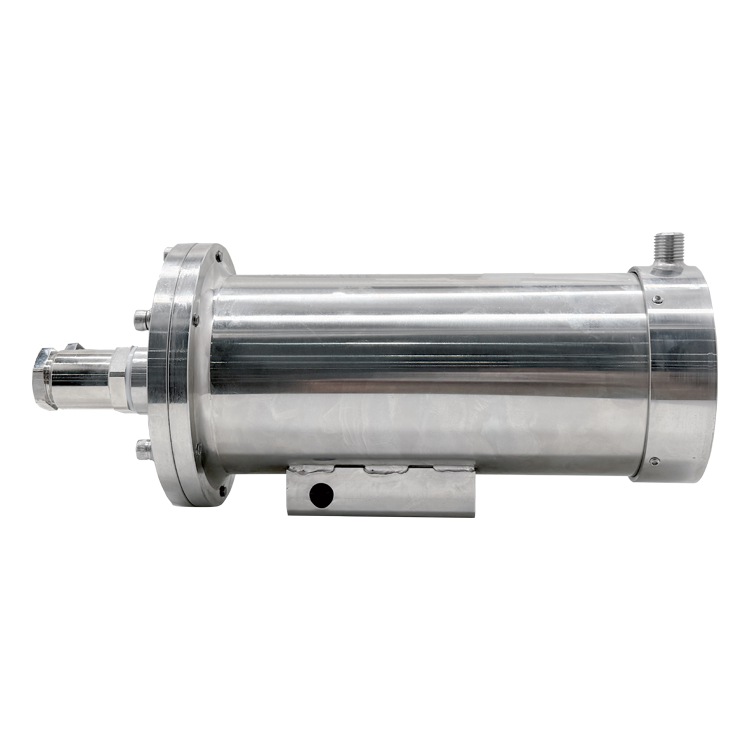

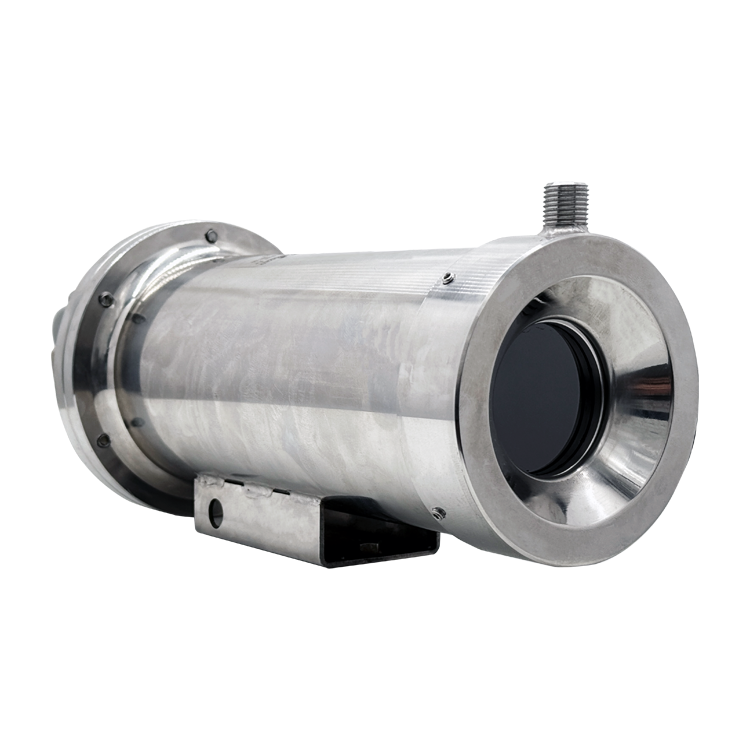

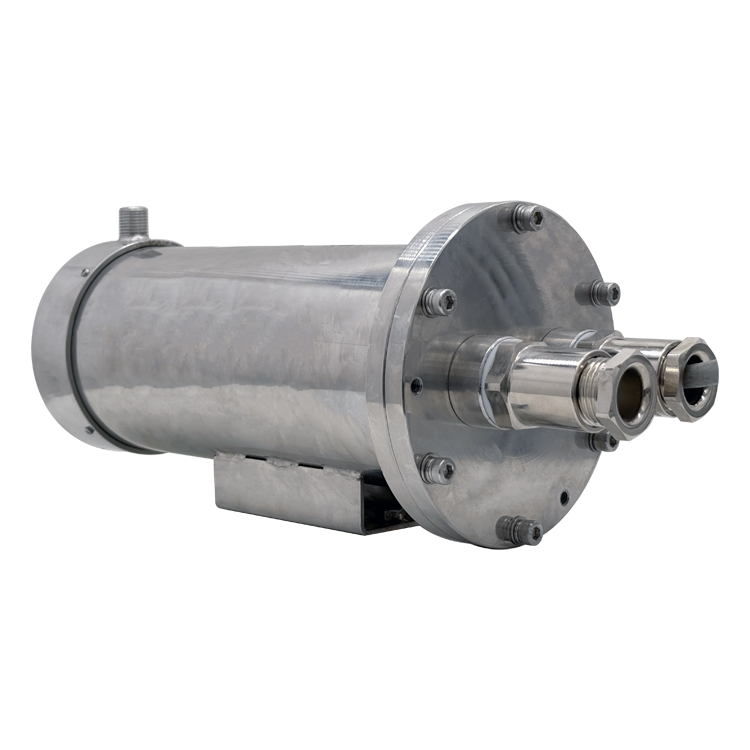

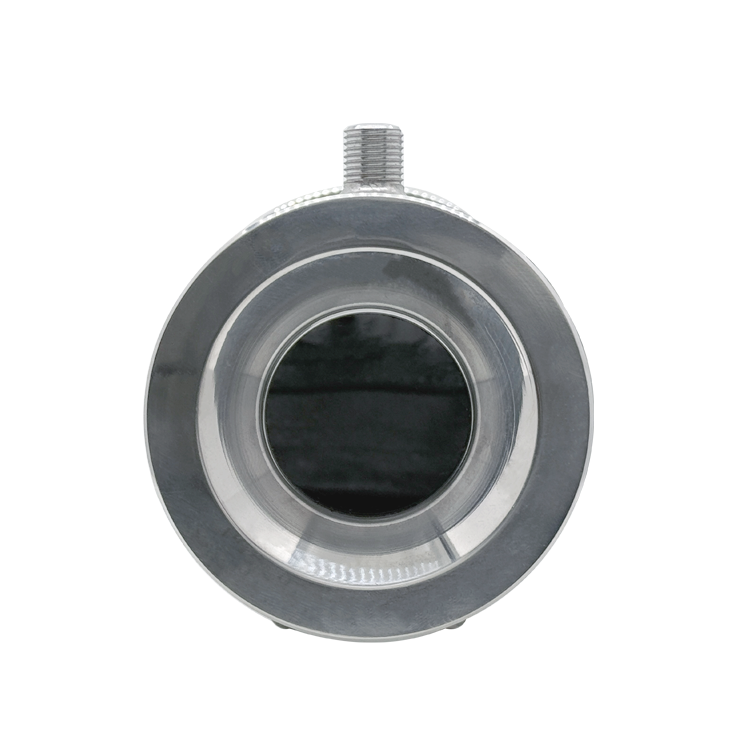

Single Light Explosion-proof Infrared thermal camera HIRDA-Ex Explosion-proof Infrared Thermal Imaging Temperature Detection OEM/ODM by HJKIR

HIRDA-Ex Single Light

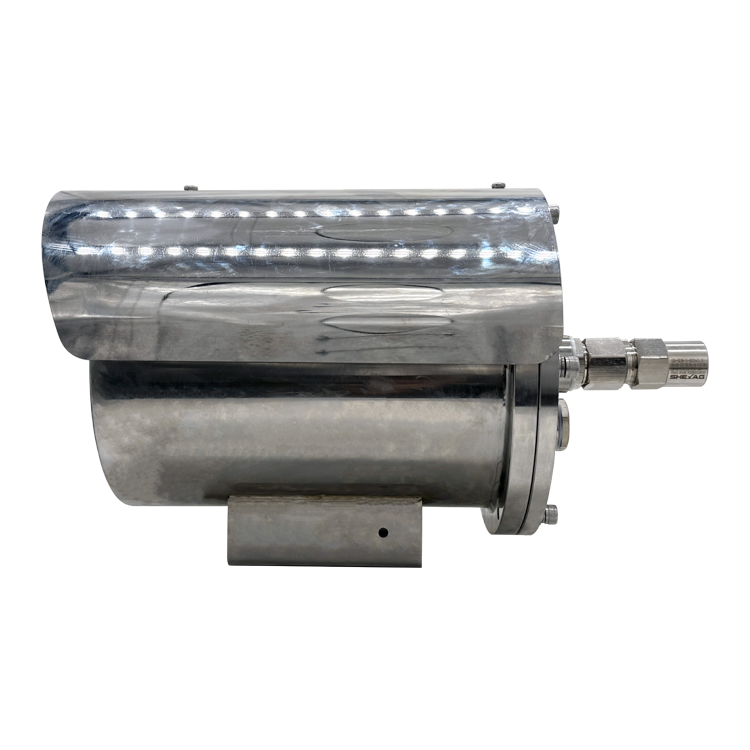

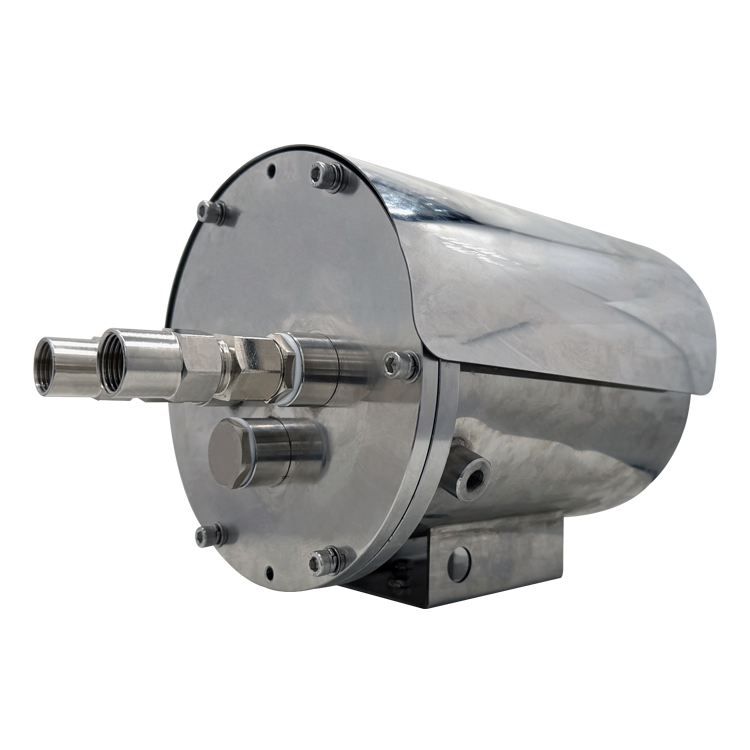

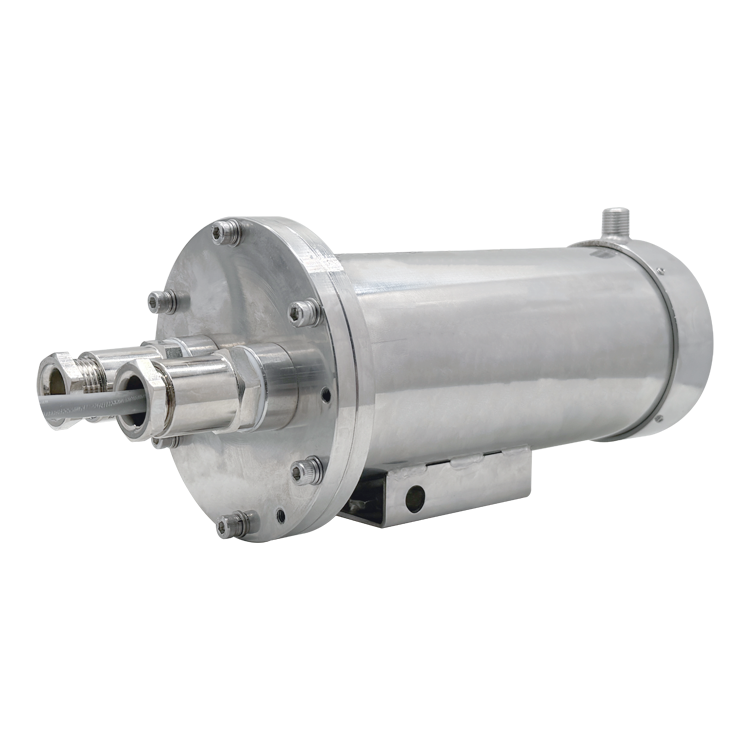

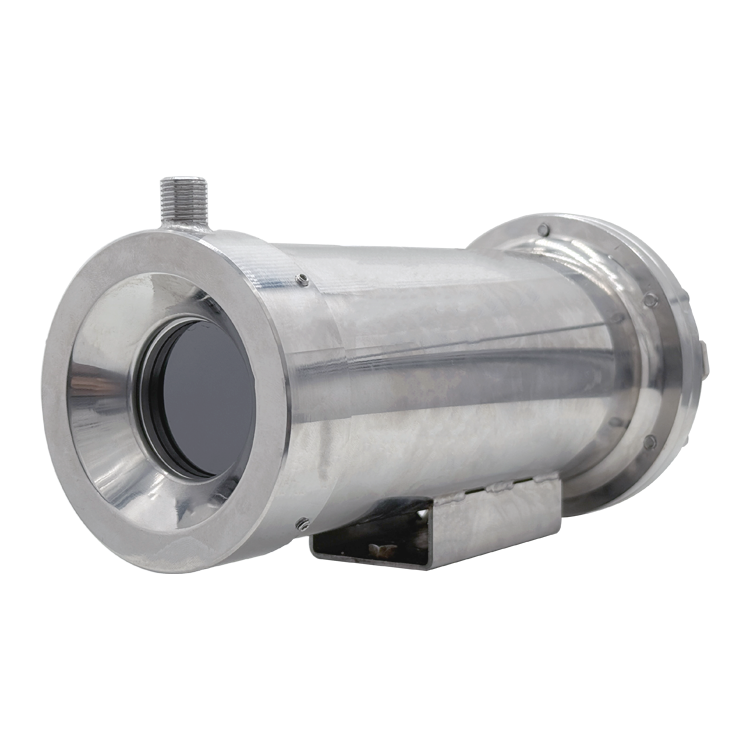

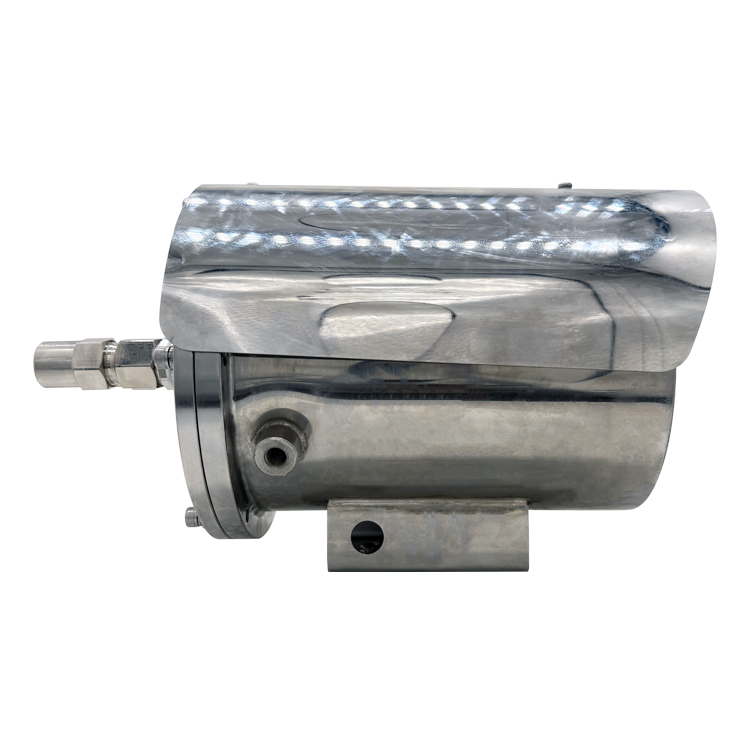

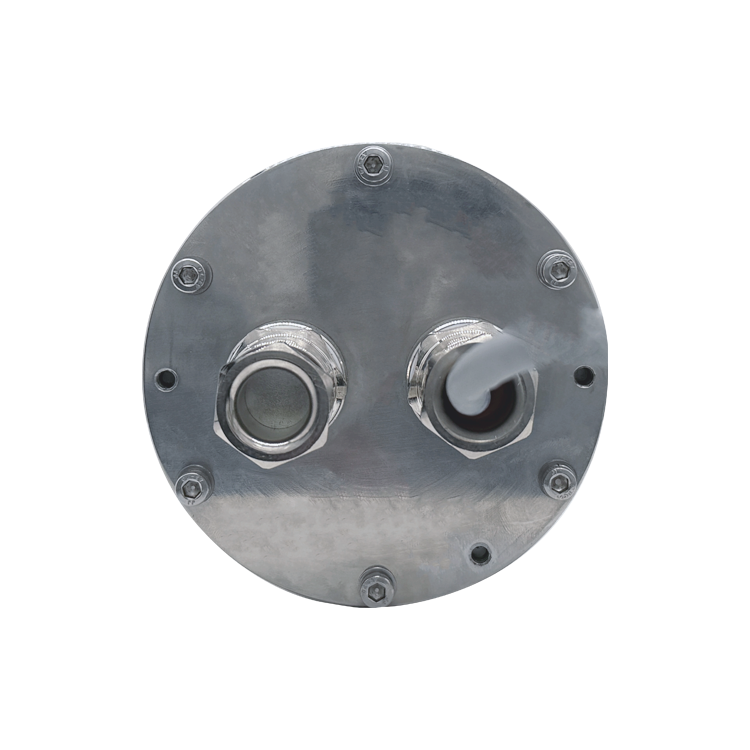

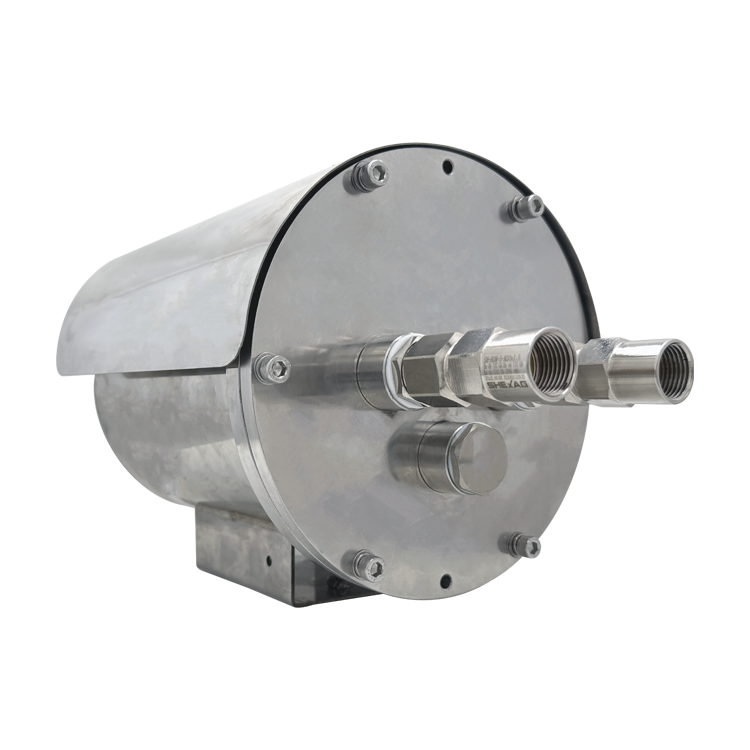

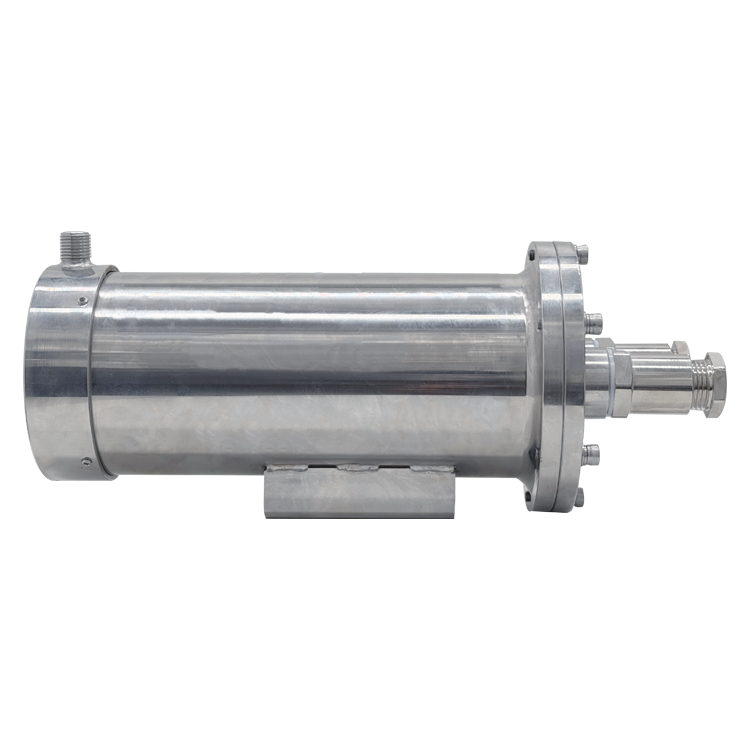

HIRDA-Ex Explosion-proof Infrared Thermal Imaging Temperature Detection and Analysis System is an infrared thermal imaging product specially designed for use in gas and dust explosion-proof environments, and the system mainly consists of an infrared thermal imaging module, infrared lenses, an explosion-proof protective cover, an explosion-proof control box, an explosion-proof image algorithm server, and a client software. It has passed the double certification of gas explosion-proof and dust explosion-proof, and the explosion-proof level can be up to Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db, and it can be applied to the Zone 1, Zone 2 with the presence of explosive gases and A21 with the presence of dust explosions, A2 area.

PRODUCT FEATURES

Real-time video display: real-time display of full radiation heat map and high-definition visible light video, you can view the temperature of any position in the infrared heat map, and record, take photos and analyze abnormal situations.

Temperature tracking: Automatically analyze the temperature upward trend of the entire infrared heat map or a specific area to find hidden areas in advance.

Data capture: thermal imaging data can be periodically collected for further analysis.

High temperature trigger shooting and alarm: When the temperature is abnormal, it can be found in time,then trigger the alarm, the software backstage will take infrared pictures and visible pictures during the incident.

Fault self-diagnosis: When the terminal equipment is downtime, the system automatically alarms.

User-defined alarm threshold and level: The system can define multiple different alarm thresholds and levels to assist the staff to assess the urgency and development of hidden dangers.

Specifications

Detector Type	Uncooled Focal Plane Microbolometer
Number Of Pixels	384x288/640x480
Pixel Spacing	12μm
Wavelength Range	8～14μm
Thermal Sensitivity （Netd)	≤50mk@30℃
Frame Rate	25/50Hz
Focal Length	8mm、13mm、19mm、25mm、35mm optional
Temperature Measurement Range	Normal Temperature Range: -20°℃~200°C Medium Temperature Range: 50°℃ ~ 800° High Temperature Range: 50°C~1600°C
Temperature Measurement	±2℃/±2%
Ptz Protection	Explosion Proof
Shield Level	Explosion Proof
Explosion-Proof Level	Ex d Iic T6 Gb/Ex Td A20 Ip68 T80°C
Color Palette	Multiple Color Palettes Including White Hot, Black Hot, Ironred, Rainbow And More
Other	With Non-Uniform Correction Function, Automaticcorrection After Power-On
Client Software	Neutral Client Software Is Provided, And Various Functionalparameters Of The Thermal Imager, Such As Color Palette,Alarm Threshold, And Image Parameter Configuration, Canbe Remotely Set Through The Client Software.
Protocol Support	Tcp/Ip, Http , Rtp , Rtsp , Ntp , Upnp , Onvif, Udp
Working Temperature	-40°C~60°C
Storage Temperature	-45°C~70°C
Resistant Temperature Shock	5°c/Min(-40°c~60°C)
Power Supply	Ac220V
Power Consumption	≤100W
Communication Interface	Rj45/Rs485
Overal Dimensions	498mmx295mmx378mm(Lxwxh）
Weight	<=25kg
