PDG190

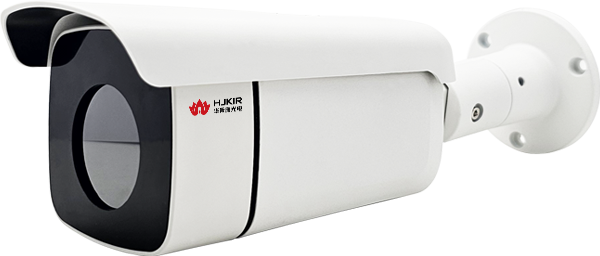

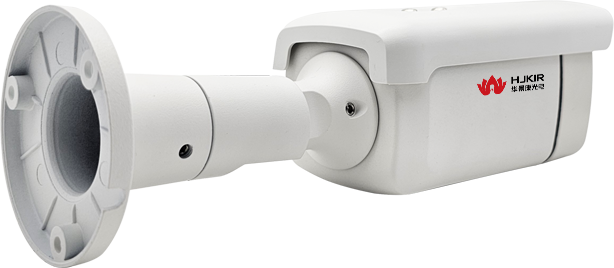

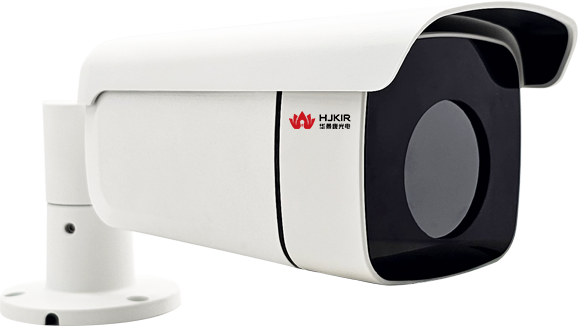

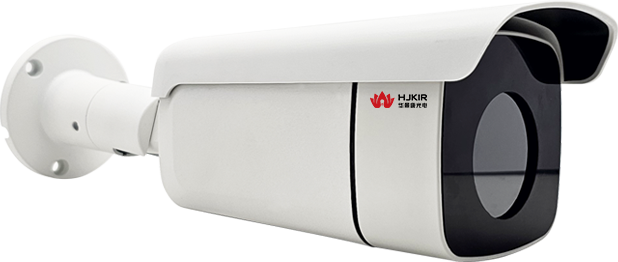

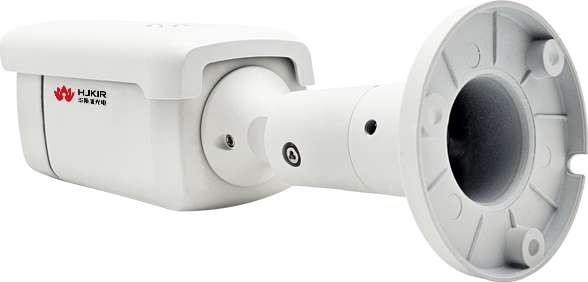

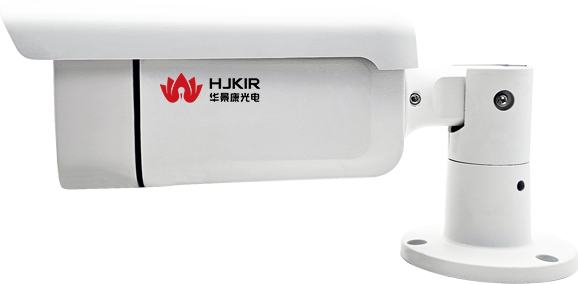

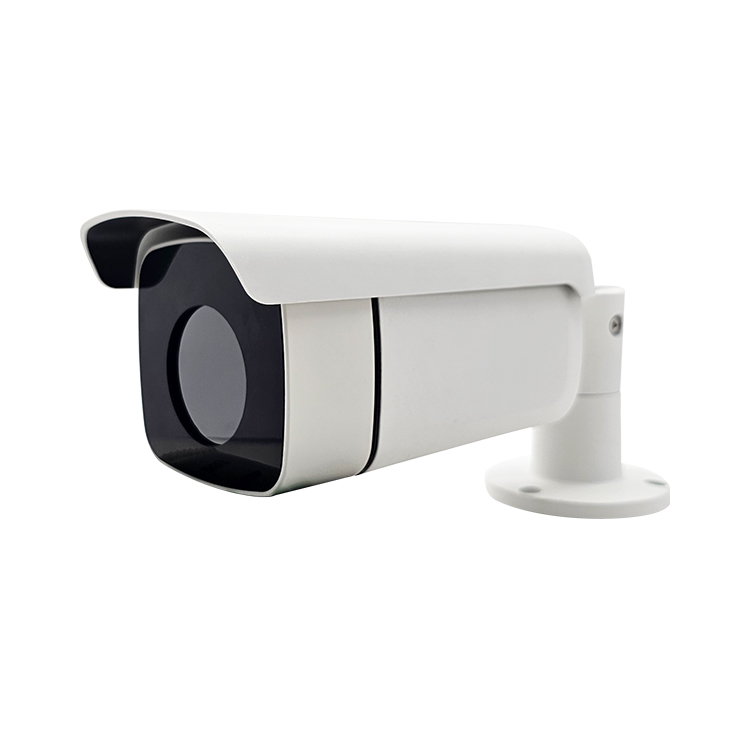

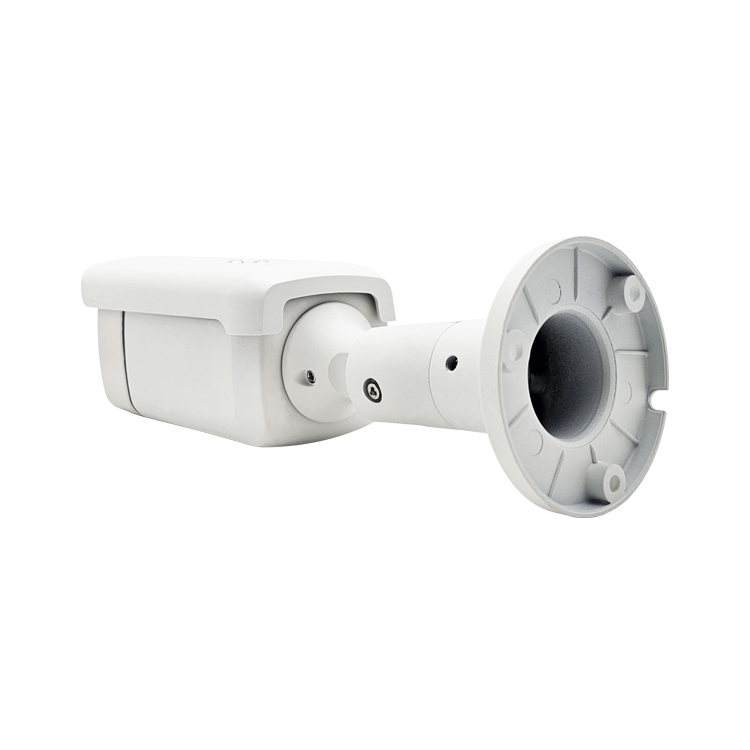

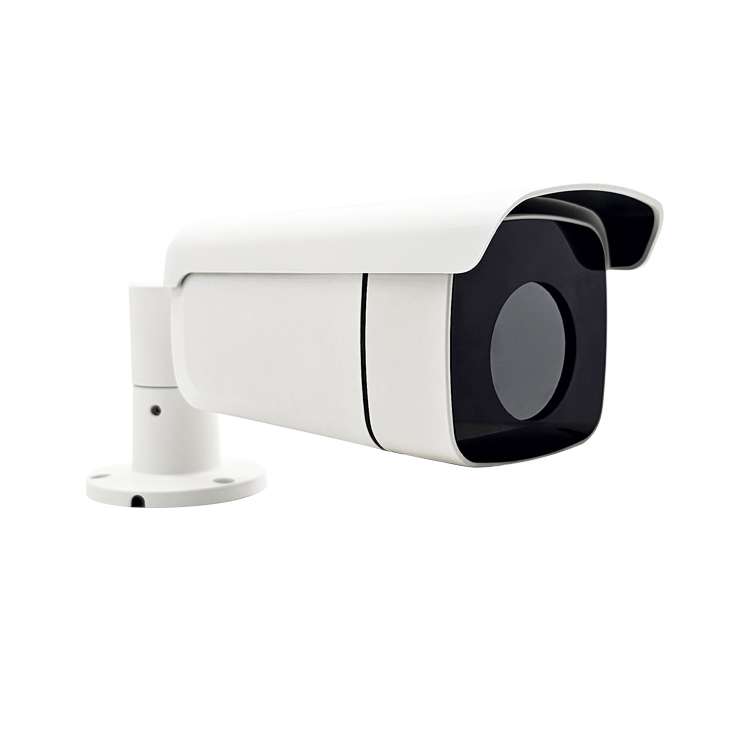

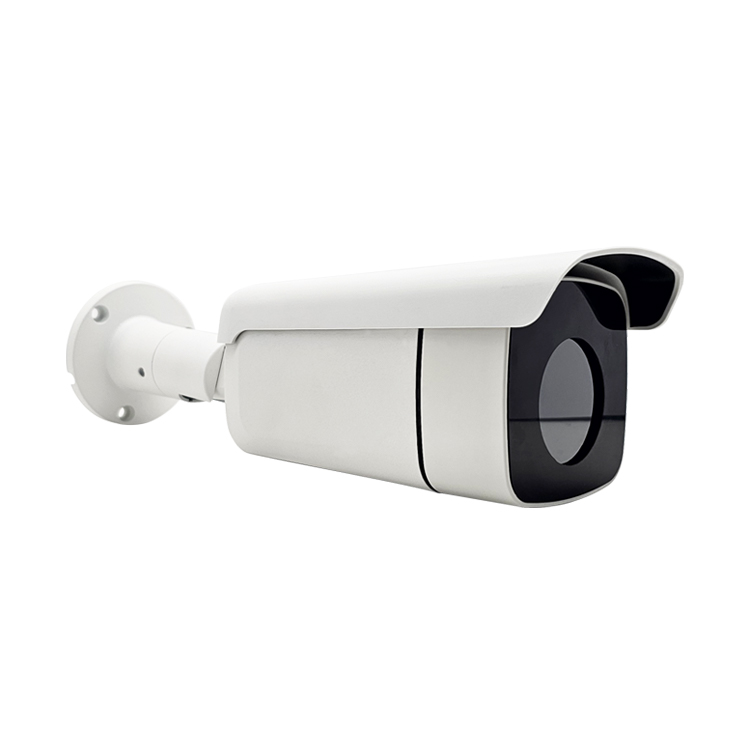

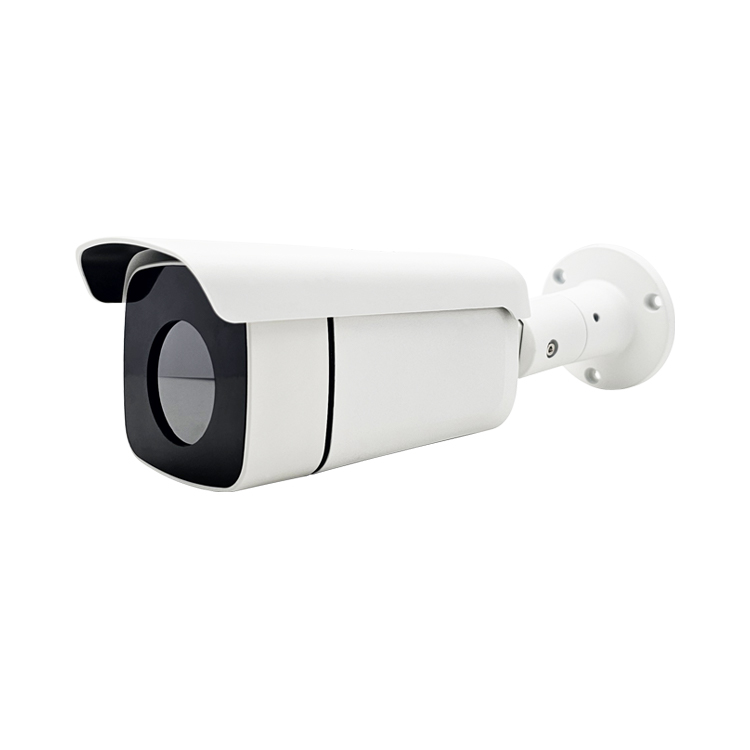

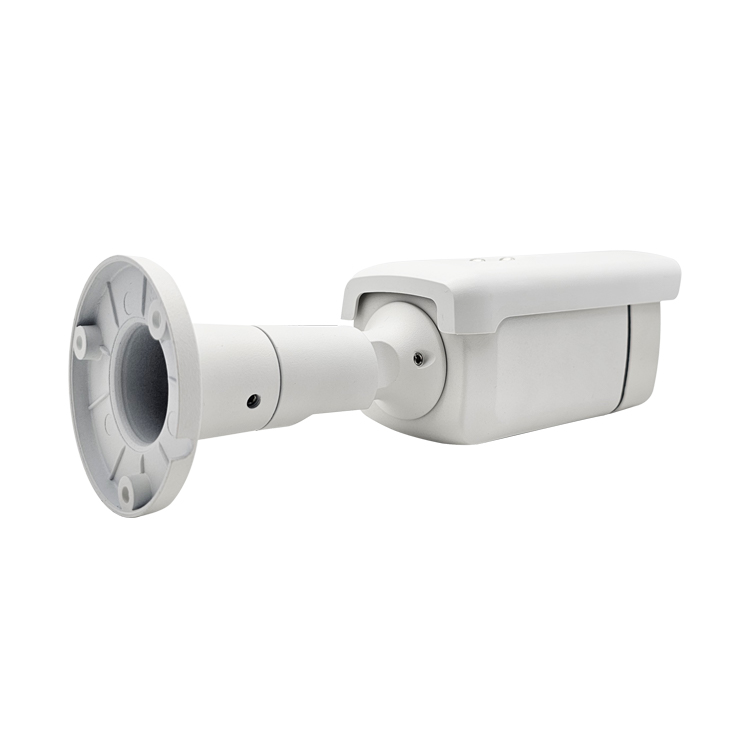

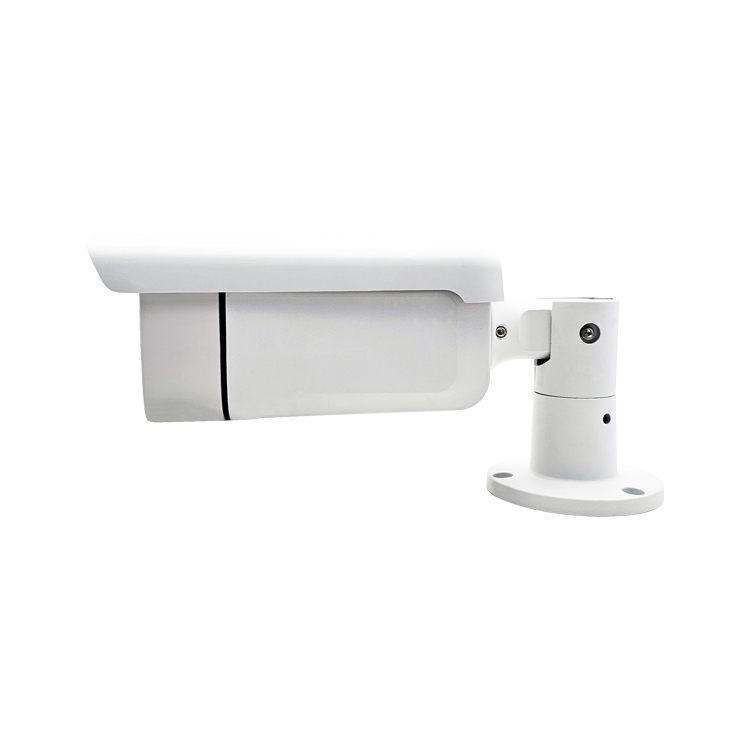

The PDG190 high-protection infrared in thermometer detection and analysis system, which specially designed for use in harsh environments. The system is mainly composed of an infrared thermal imaging movement, an infrared lens, a metal protective cover, a thermal imager control cabinet, an image algorithm server and client software.

Thermal imaging CCTV camera system adopts full-range radiation temperature measurement technology, which can obtain multi-point temperature values at the same time; the temperature measurement range can reach up to 2500 ℃; self-developed temperature measurement algorithm, high temperature measurement accuracy; metal protective cover design, IP66 protection level; thermal ip camera system software can realize target infrared thermal map display, thermal data collection, storage and analysis, high and low temperature alarm and positioning, temperature tracking and other functions.

This product has been widely used in many industries such as steel metallurgy, non-ferrous metals, electricity, cement, glass, etc.

PRODUCT FEATURES

IR video camera has wide operating temperature range, can work in -20℃~+60℃ ambient temperature;

Infrarood camera has wide operating temperature range, can work in -20℃~+60℃ ambient temperature;

Full-screen real-time temperature measurement with wide coverage;

Independent of the system platform, you can directly log in to the web page to access images and configurations, and can directly output reports.

Supports onvif protocol and can be connected to mainstream NVR;

Temperature data can be connected to LED screen and PLC;

Specifications

model	PDG190-NSxxEx (Single infrared )
Infrared resolution	384×288	640×480	384×288	640×480
Infrared lens option	8 , 13 , 25 , 35	8 , 19 , 25 , 35	8 , 13 , 25 , 35	8 , 19 , 25 , 35
Infrared field of view	45 °, 25 °, 15 °, 10 °
Infrared wavelength range	8 ～ 14μm
Thermal sensitivity (NETD)	≤50mk@30 ℃

Frame rate	25Hz
focusing	Electric / Automatic
Image Algorithms	Gamma correction, enhancement algorithm
Temperature measurement accuracy	±2 ℃ or ±2%
Temperature measurement range	-20 ℃ ～ 1600 ℃ (need to be divided into sections) , can be expanded to 2500 ℃
Video compression format	H.264/H.265
Data Types	H264 , H265 , 16Bit Raw temperature data
Web Standards	Gigabit Ethernet / Adaptive 10M/100M/1000M
Protocol support	IPv4/IPv6 , TCP , UDP , NTP , HTTP , RTSP , RTP , ICMP , WebSocket , ONVIF
Temperature output	Support analog 4--20mA , RS485 , Modbus TCP/RTU
External trigger	Support RS485 Level, TTL Level
Protection level	IP66
size	PDG190-NS : 193mm × 92mm × 85mm
Installation	Equipped with PTZ bracket
weight	PDG190-NS ≤ 1Kg
Operating temperature	-20 ℃ ～ + 60 ℃
