PSWExDG300

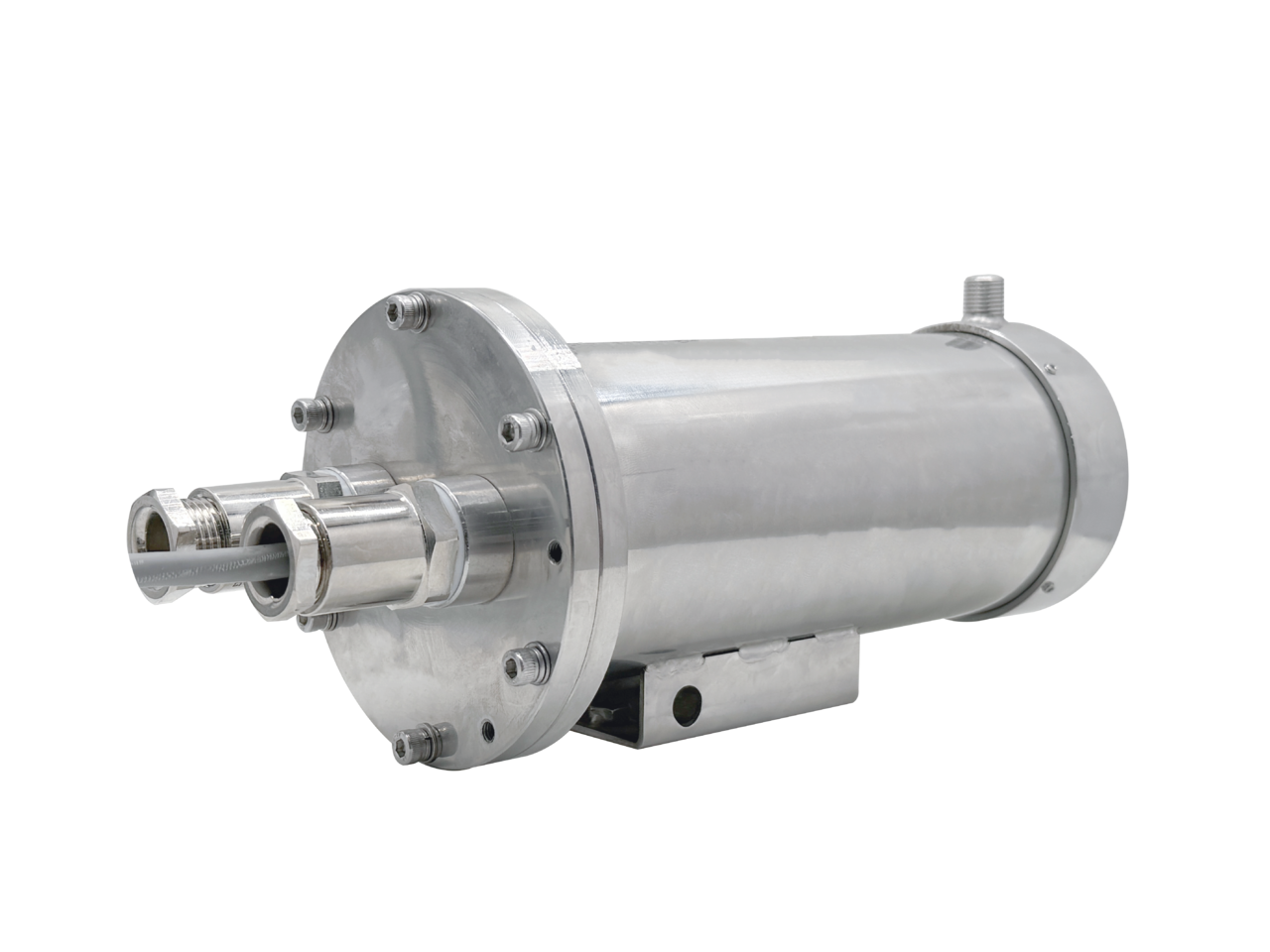

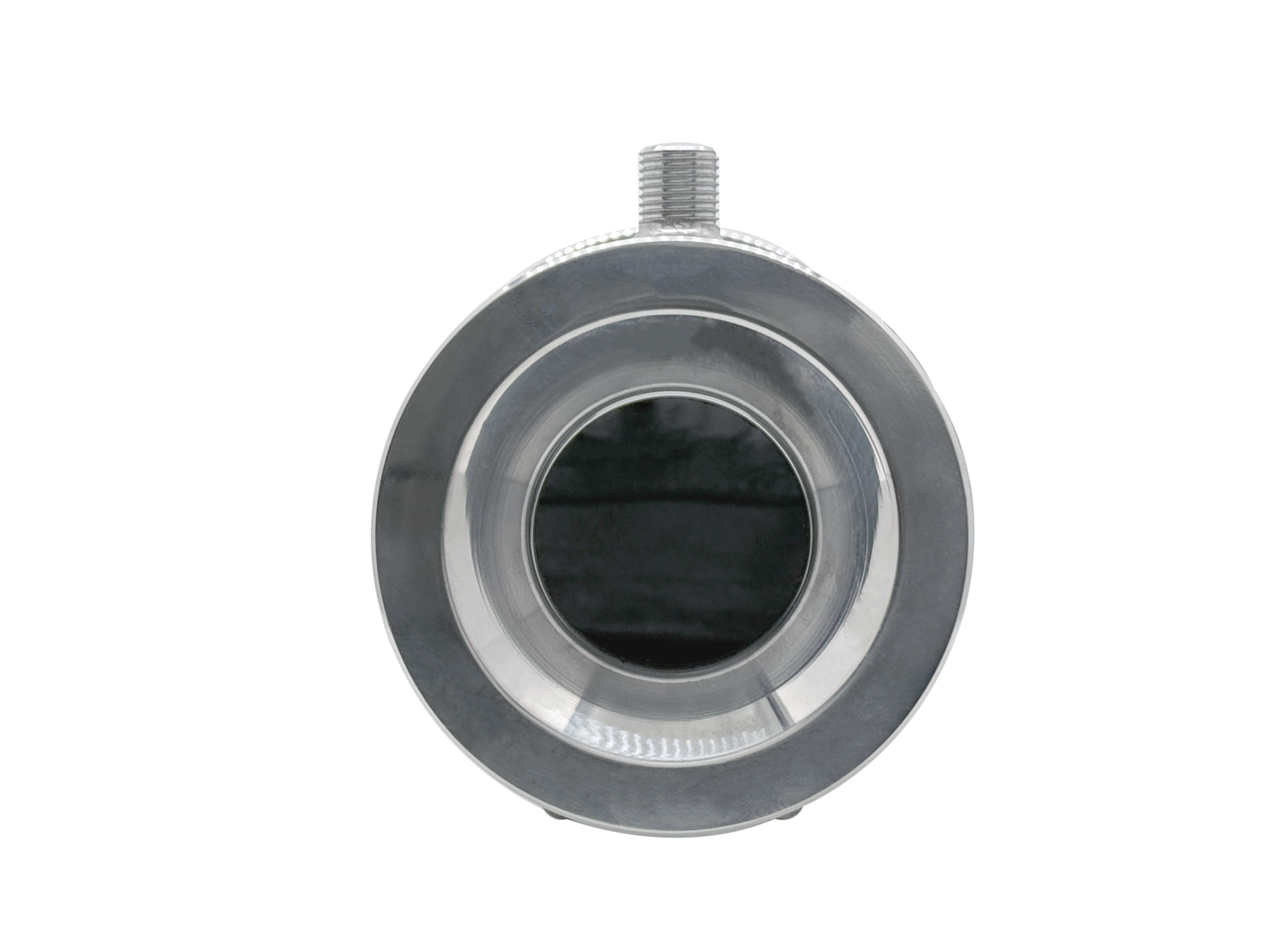

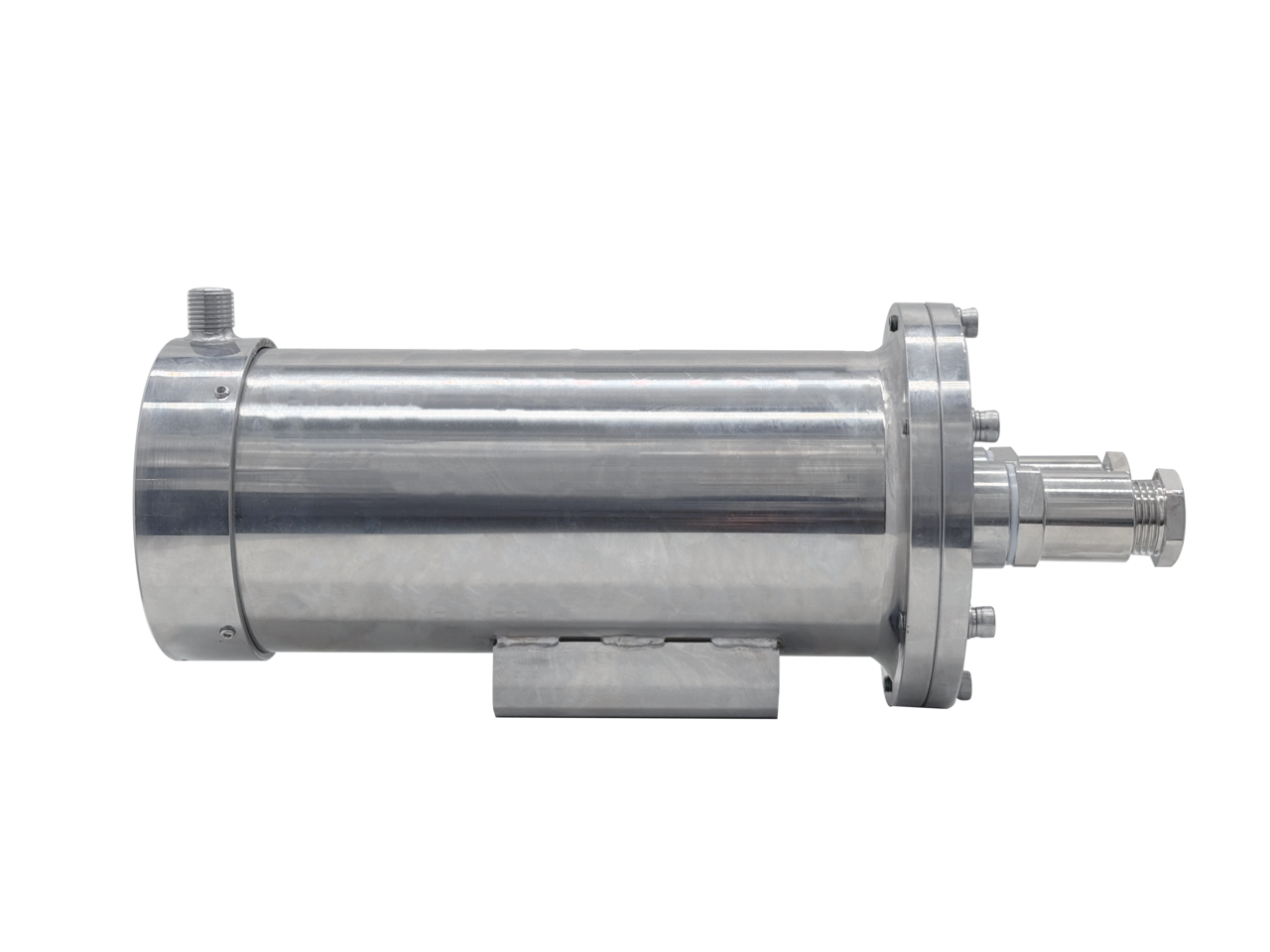

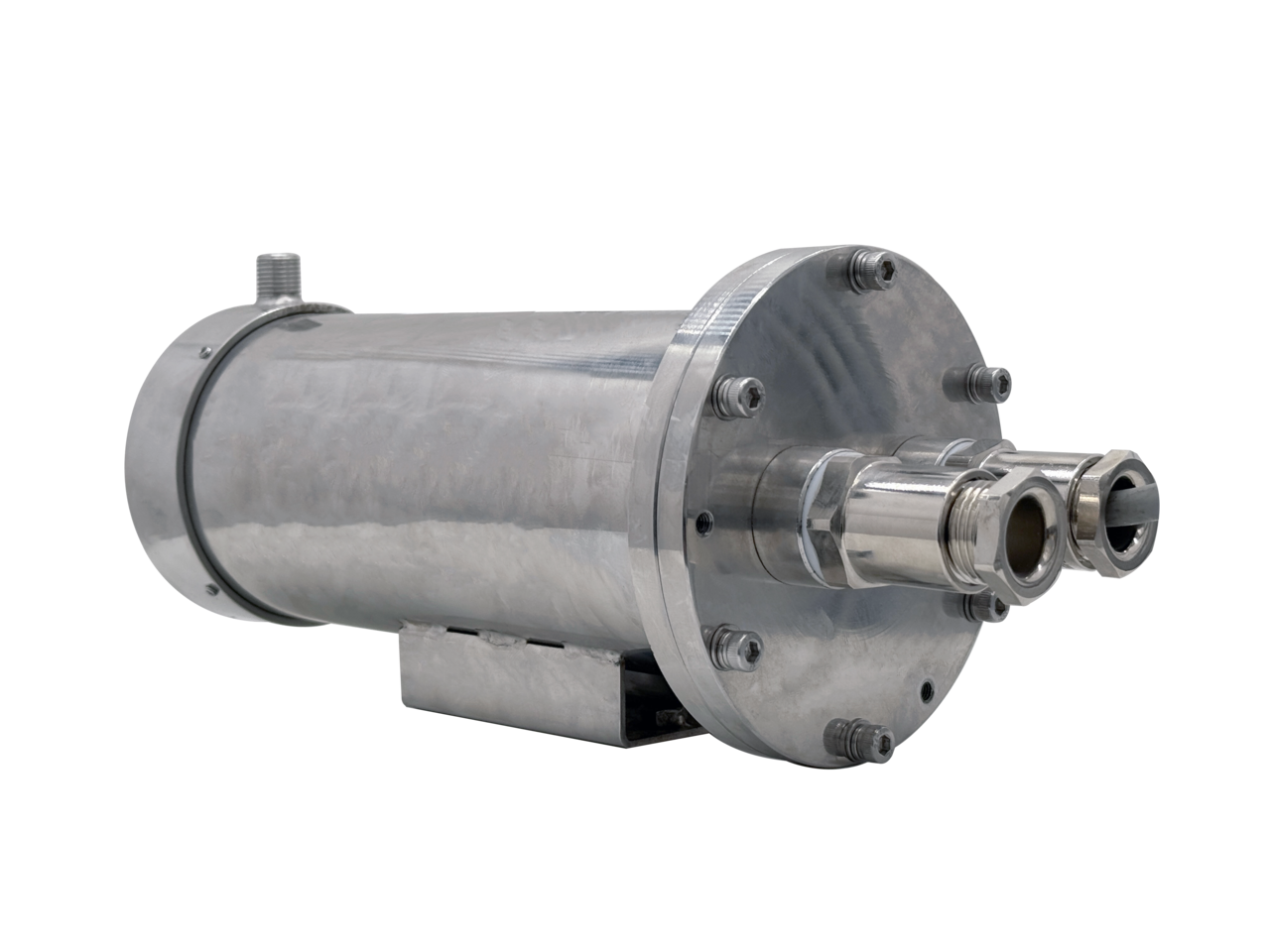

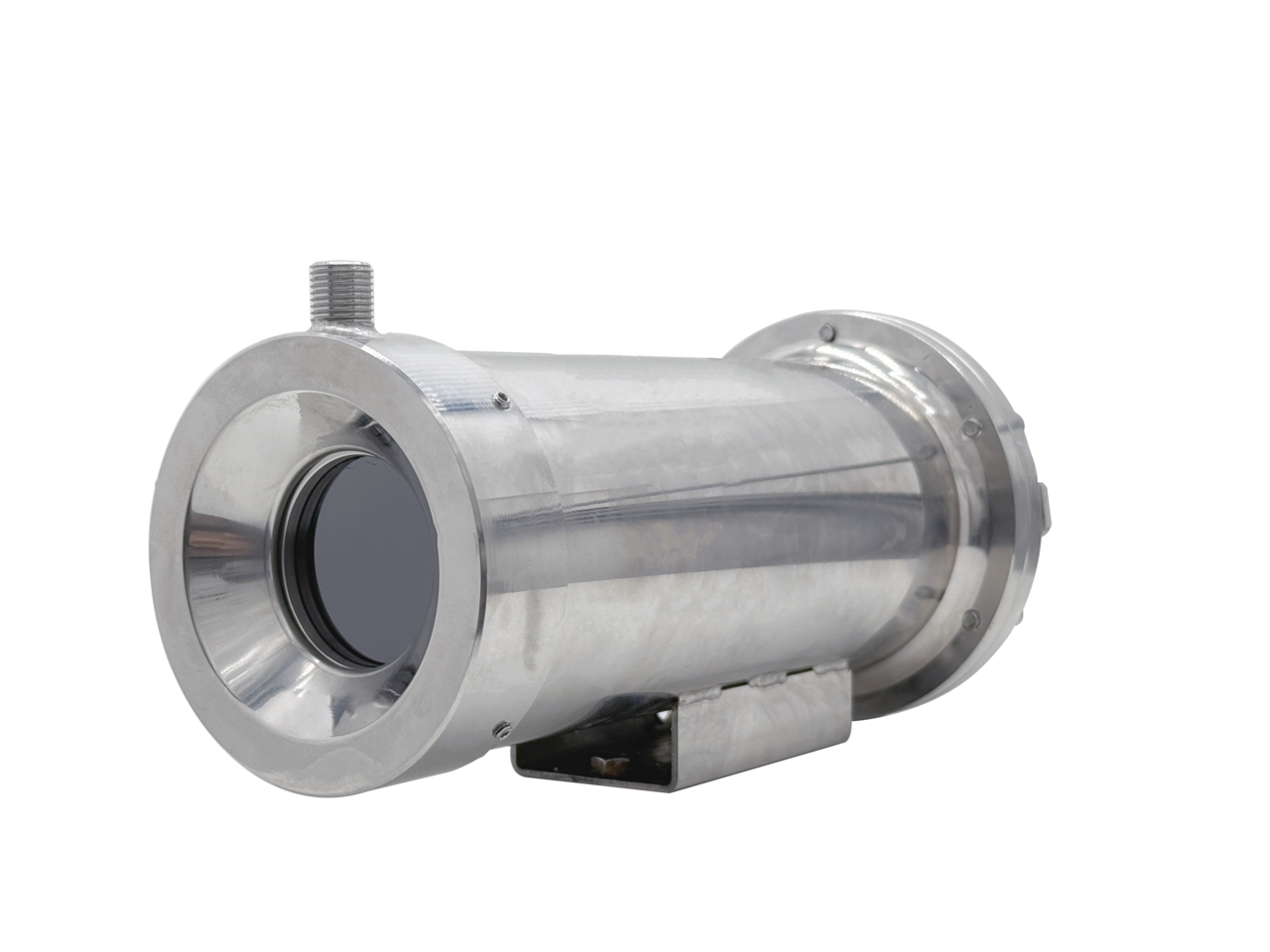

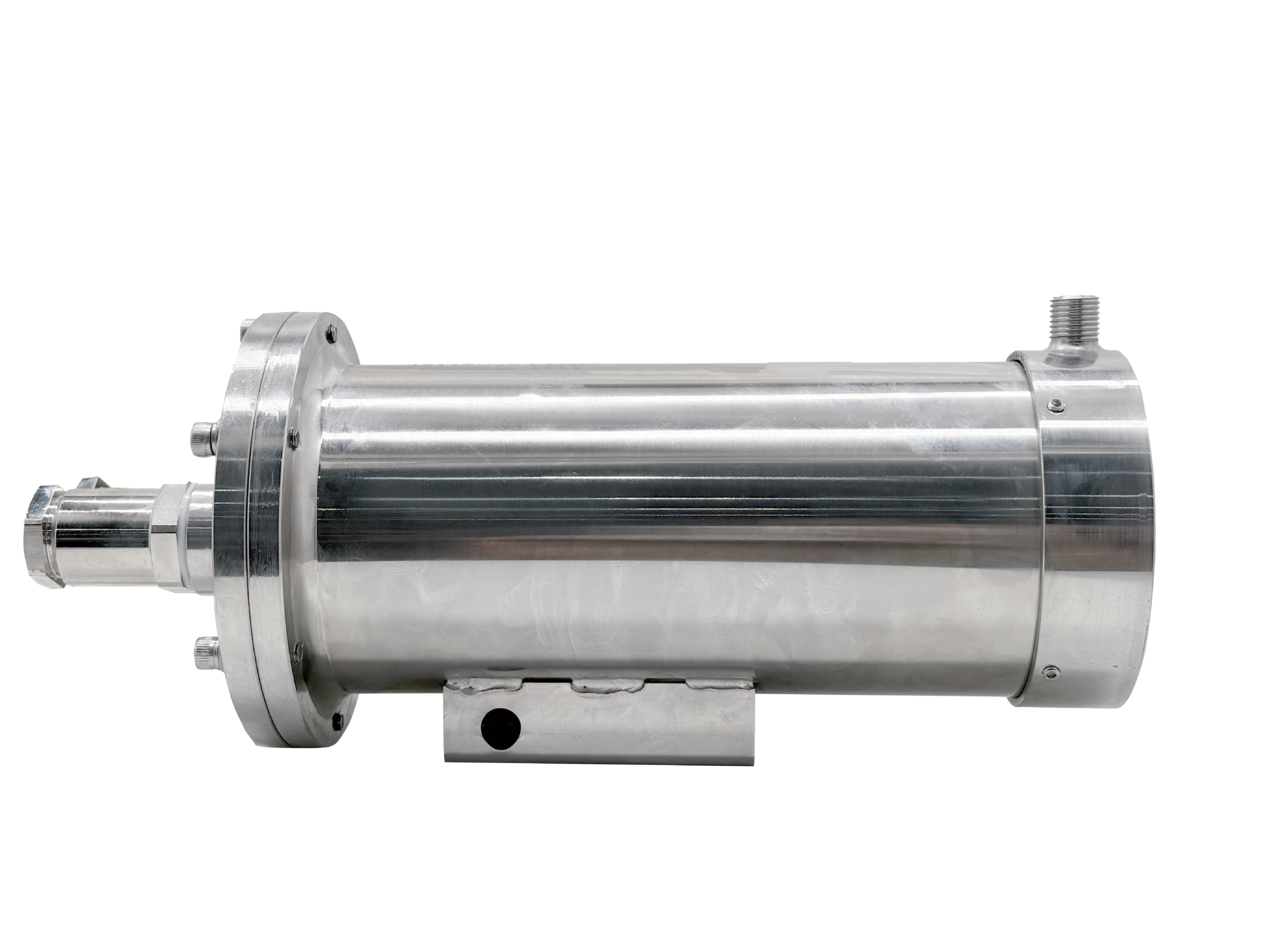

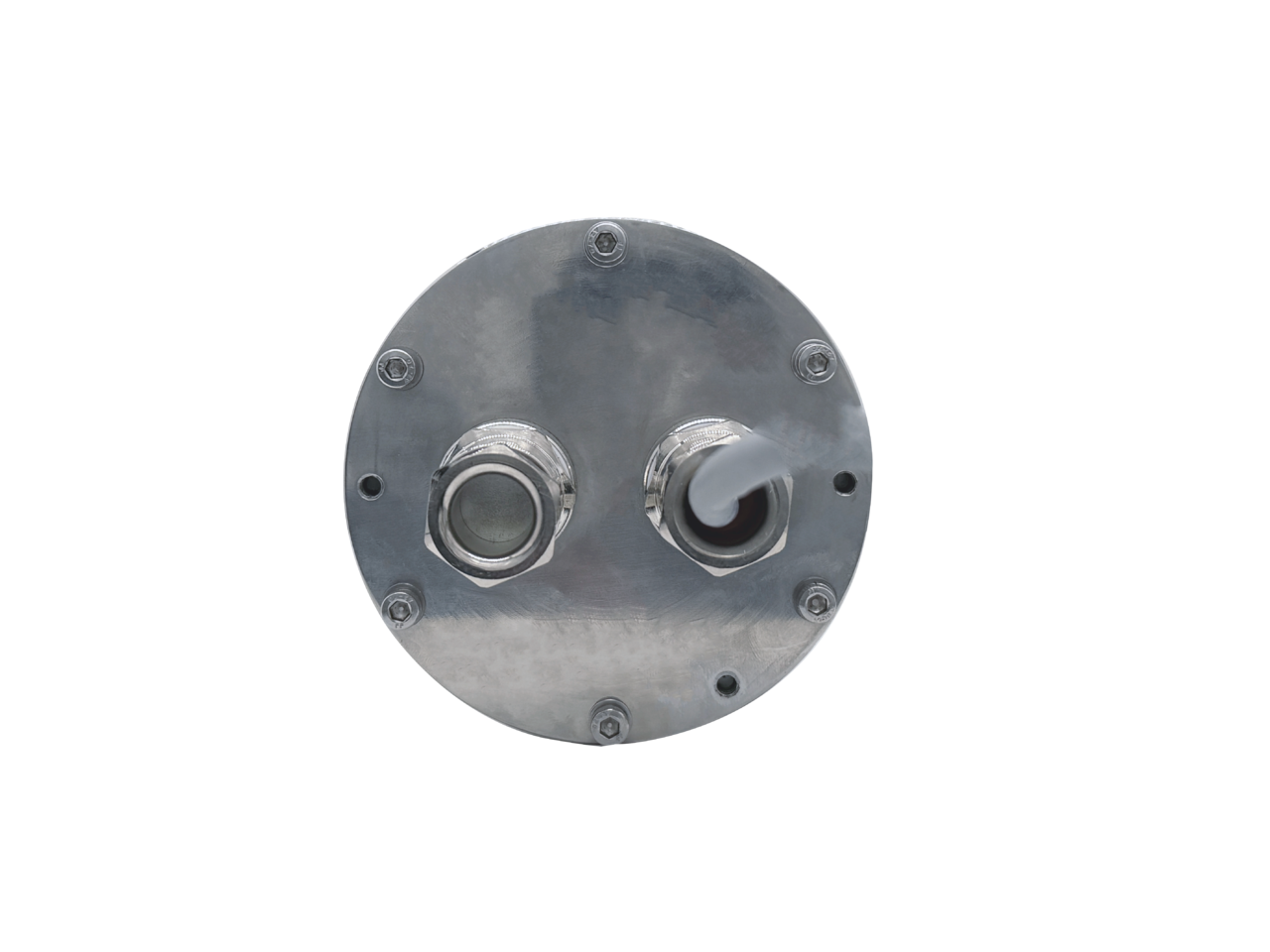

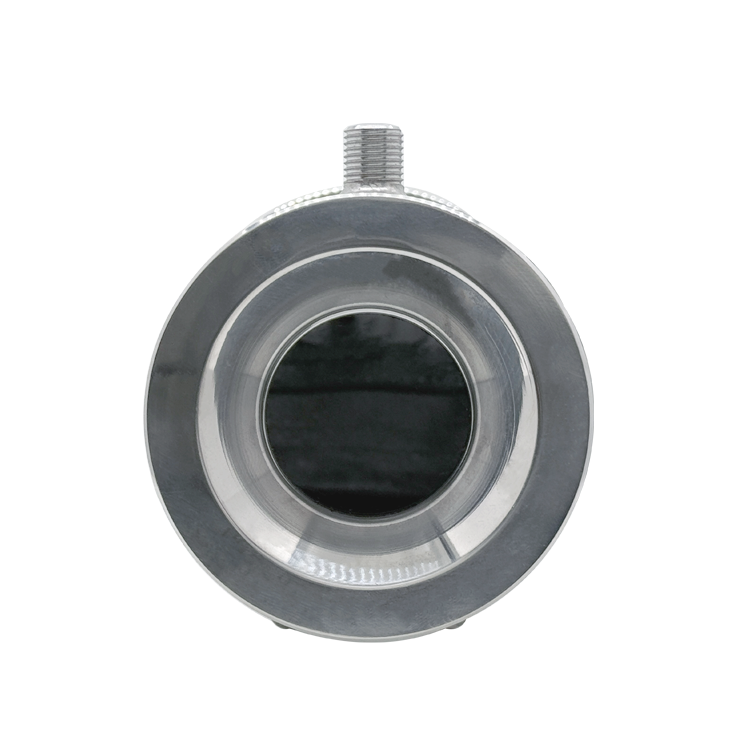

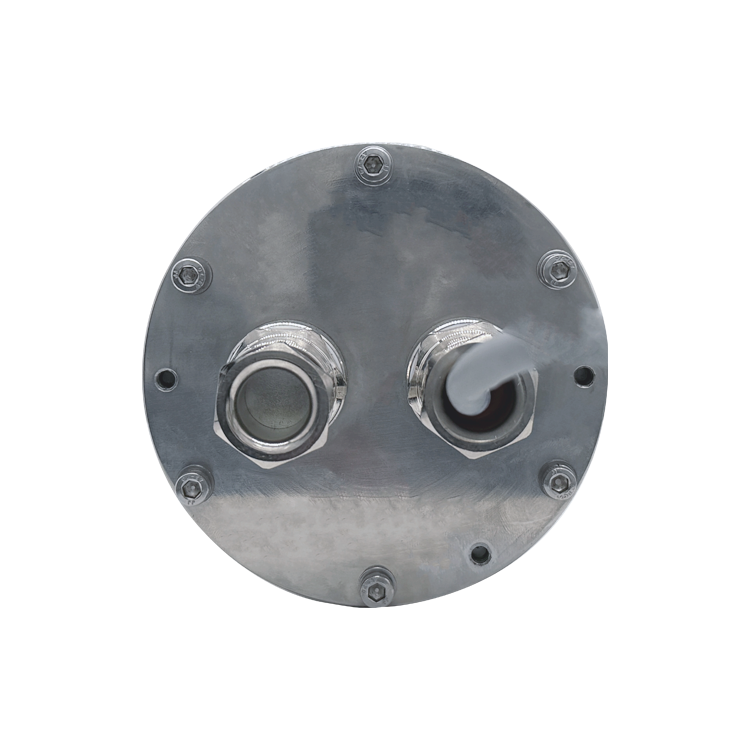

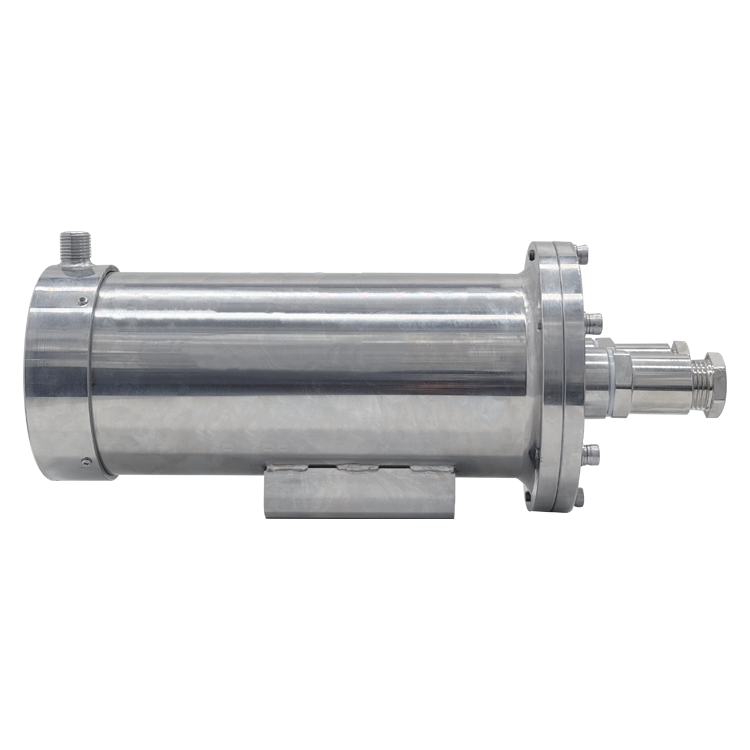

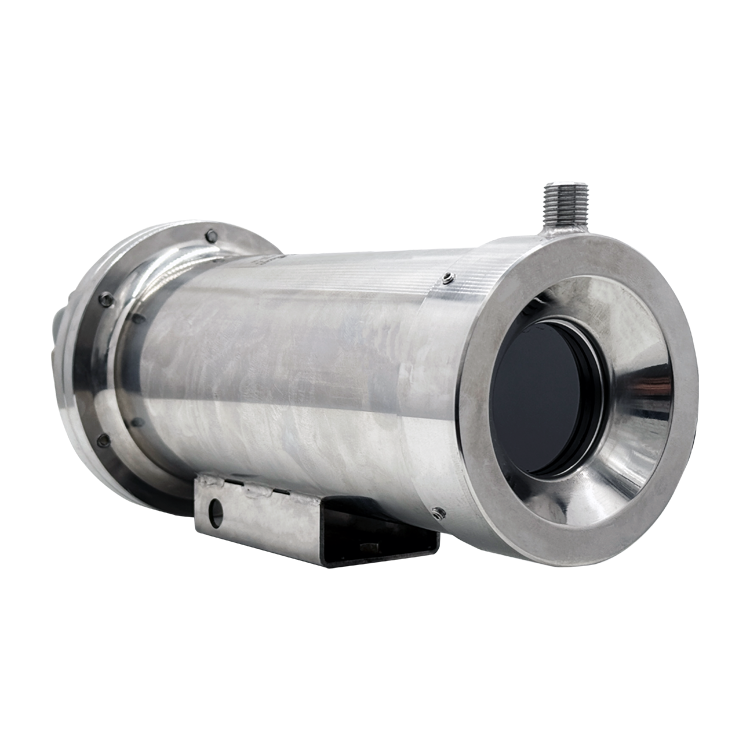

The PSWExDG300-NS explosion-proof camera with an infrared temperature detection and analysis system, which designed for gas and dust explosive environments. The system primarily consists of an i-cam unit, infrared lens, explosion-proof protective cover, explosion-proof control box, explosion-proof image algorithm server, and client software.

This system employs full-range radiation temperature measurement technology, enabling it to obtain multi-point temperature values simultaneously. With a temperature measurement range of up to 2000℃, its self-developed temperature measurement algorithm ensures high accuracy, having passed both gas explosion-proof and dust explosion-proof certifications and reaching an explosion-proof level of Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db. This makes it suitable for use in explosive gas hazardous areas 1, 2 and dust explosion hazardous areas A21, A22. With an IP68 protection level, it can operate stably and safely in harsh conditions over the long term.

PRODUCT FEATURES

Thermographic camera has full-screen real-time temperature measurement with wide coverage;

Independent of the system platform, you can log in directly to the web page to access images and configurations, and can directly output alarm signals to PLC or alarms;

Supports onvif protocol and can be connected to mainstream NVR;

The temperature measurement range can be customized, with a maximum support of -20℃ to 2000℃;

Temperature measurement accuracy is better than ±2℃ or ±2%;

Supports modbus protocol and can be connected to DCS system to transmit temperature data.

Specifications

model	PSWExDG300-NS
Infrared resolution	384×288	640×480
Infrared lens option	4 , 8 , 13 , 25	9.5 , 19 , 25 , 35
Infrared field of view	60 °, 45 °, 25 °, 15 °
Wavelength range	8 ～ 14μm
Thermal sensitivity (NETD)	≤50mk@30 ℃
Frame rate	25Hz
focusing	Automatic
Image Algorithms	Gamma correction, enhancement algorithm
Temperature measurement accuracy	±2 ℃ or ±2%
Temperature measurement range	Normal temperature range: -20 ℃ ~ 200 ℃ (standard) Medium temperature range: 150 ℃ ~650 ℃ (optional) High temperature range: 350 ℃ ~1600 ℃ (optional) Ultra-high temperature range: 650 ℃ ~2000 ℃ (optional )
Network video compression format	H.265
Data Types	H265 , 16Bit Raw temperature data
Web Standards	Gigabit Ethernet / Adaptive 100M/1000M
Protocol support	IPv4/IPv6 , TCP , UDP , NTP , HTTP , RTSP , RTP , ICMP , WebSocket , ONVIF
Temperature output	Support analog 4--20ma , RS485 , Modbus TCP/RTU
External trigger	Support RS485 Level, TTL Level
Protection level	IP65
size	Φ78mm×235mm
Installation	Equipped with PTZ bracket
weight	≤ 5Kg
Operating temperature	-20 ℃ ～ + 60 ℃
